UBNT PBE-5AC-620 29dbi Antenna 802.11ac 5GHz Outdoor Wireless Surveillance System
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
UBNT
Product Description

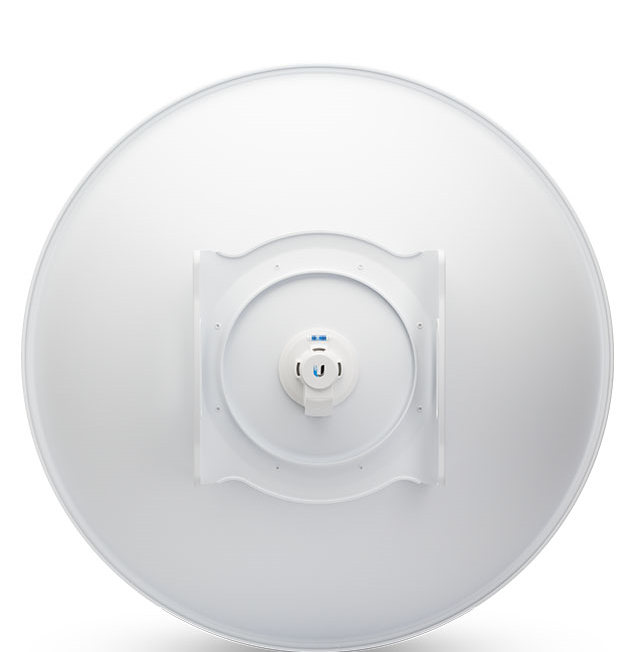

UBNT Outdoor Wireless Surveillance System PowerBeam PBE-5AC-620 802.11ac wireless bridge 29dbi antenna gain
description:
PBE-5AC-620 Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam® AC is ideal for CPE deployments requiring maximum performance.
Model Comparison:
| Model |
|
|
|
|
|---|---|---|---|---|
| Frequency | 2.4 GHz | 5 GHz | 5 GHz | 5 GHz |
| Throughput | 330+ Mbps | 450+ Mbps | 450+ Mbps | 450+ Mbps |
| Range | 20+ km | 25+ km | 30+ km | 25+ km |
| Management Radio | yes | yes |
Specification
| PBE-5AC-620 | |
|
Dimensions |
650 x 650 x 386 mm (25.6 x 25.6 x 15.2") |
|---|---|
|
Weight |
6.4 kg (14.11 lb) |
|
Gain |
29 dBi |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port |
|
Enclosure |
Outdoor UV Stabilized Plastic |
|
Max. Power Consumption |
8.5W |
|
Max. Output Power |
24 dBm |
|
Power Supply |
24V, 0.5A Gigabit PoE Supply (Included) |
|
Power Method |
Passive PoE (Pairs 4, 5+; 7, 8 Return) |
|
Wind Survivability |
200 km/h (125 mph) |
|
Wind Loading |
872 N @200 km/h (196 lbf @125 mph) |
|
Mounting |
Pole Mounting Kit Included |
|
Operating Temperature |
-40 to 70° C (-40 to 158° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Shock and Vibrations |
ETSI300-019-1.4 |
|
Certifications |
CE, FCC, IC |
| Operating Frequency (MHz) | ||
|
Worldwide |
5150 - 5875 | |
|---|---|---|
|
US/CA |
U-NII-1 |
5150 - 5250 |
|
U-NII-2A |
5250 - 5350 | |
|
U-NII-2C |
5470 - 5725 | |
|
U-NII-3 |
5725 - 5850 | |
