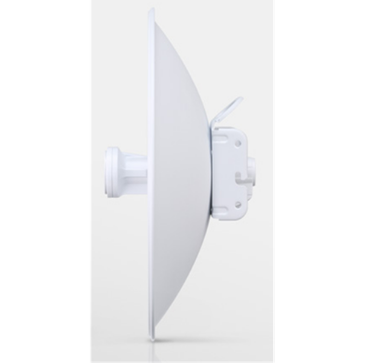

UBNT PBE-2AC-400 2.4GHz AirMAX 7.5W 18dBi Outdoor Wireless Surveillance System
Outdoor Wireless Surveillance 2.4GHz High-Performance airMAX ac Bridge UBNT PBE-2AC-400 with Dedicated Wi-Fi management
PBE-2AC-400 Description:
Innovative Mechanical Design :
1.Convenient pole-mounting Only a single wrench is needed to mount the PowerBeam 2AC on a pole.
2.Easy removal The antenna feed can be detached with the push of a button.
3.Built-in mechanical tilt The mounting bracket offers elevation adjustments of up to ±20°.
PBE-2AC-400:
Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam® AC is ideal for CPE deployments requiring maximum performance.
Industrial-Strength Construction :
1.Fasteners GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners.
2.Dish and brackets Made of galvanized steel that is powder-coated for superior corrosion resistance.
3.Optional support In high-wind environments, you can enhance support with additional hardware (not included).
Specification:
| PBE-2AC-400 | |
|
Dimensions |
420 x 420 x 289 mm (16.54 x 16.54 x 11.38") |
|---|---|
|
Weight (Mount Included) |
1.795 kg (3.957 lb) |
|
Gain |
18 dBi |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port |
|
Enclosure |
Outdoor UV Stabilized Plastic |
|
Max. Power Consumption |
7.5W |
|
Power Supply |
24V, 0.5A Gigabit PoE Adapter (Included) |
|
Power Method |
Passive PoE (Pairs 4, 5+; 7, 8 Return) |
|
Wind Survivability |
200 km/h (125 mph) |
|
Wind Loading |
342.5 N @ 200 km/h (77 lbf @ 125 mph) |
|
Mounting |
Pole Mounting Kit Included |
|
Operating Temperature |
-40 to 70° C (-40 to 158° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Shock and Vibrations |
ETSI300-019-1.4 |
|
Certifications |
CE, FCC, IC |
| Operating Frequency (MHz) | |
|
Worldwide |
2412 - 2472 |
|---|---|
|
US/CA |
2412 - 2462 |
| Management Radio (MHz) | ||
|
Worldwide |
5150 - 5250 | |
|---|---|---|
|
US/CA |
U-NII-3 |
5725 - 5850 |
