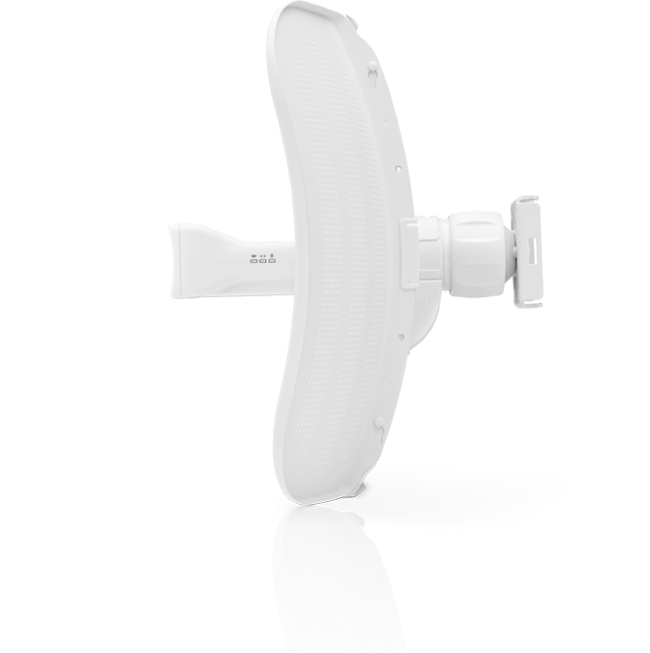

UBNT LBE-M5-23 AirMAX FTTH 4W 802.11ac 5GHz Outdoor Wireless Bridge
UBNT LBE-M5-23 airMAX 5GHz outdoor high power wireless bridge long distance broadband transmission bridge
Description:
1.The WIS-D5230 has successfully made it with high power radio integrated into a dish antenna feed horn.
2.In this way the whole system just eliminates the insertion loss from the RF cable and connectors.
3.Making it a highly efficient system along with extremely smart and powerful all-in-one design.
Incredible Long Range:1.IS-D5230 is a 300Mbps 2*2 MIMO outdoor wireless dish bridge for long range point-to-point and point-to-multi-point solutions.
2. It is the most cost-effective and ultimate solution for WISP CPE, which provides incredible long range much better than any other vendors solution.
Specification
| Specifications | |
|---|---|
| Dimensions | 362 x 267 x 184 mm |
| Weight | 750 g |
| Operating Frequency | 5150 - 5875 MHz |
| Networking Interface | (1) 10/100 Ethernet Port |
| Antenna Gain | 23 dBi |
| Max. Power Output | 25 dBm |
| Max. Power Consumption | 4W |
| Power Supply | 25V, 0.2A PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Operating Temperature | -40°C to 70°C |
| Operating Humidity | 5 to 95% Noncondensing |
| ESD/EMP Protection | ±24KV Contact / Air |
| Shock and Vibrations | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC |
| Wind Survivability | 200 km/h |
| Wind Loading | 176.86 N @ 200 km/h |
