1000 Mbps 25dBi 8W Wireless Bridge Windshield PBE-RAD-400
UBNT wireless bridge windshield PBE-RAD-400 is suitable for PBE-M5-400 and PBE-M2-400

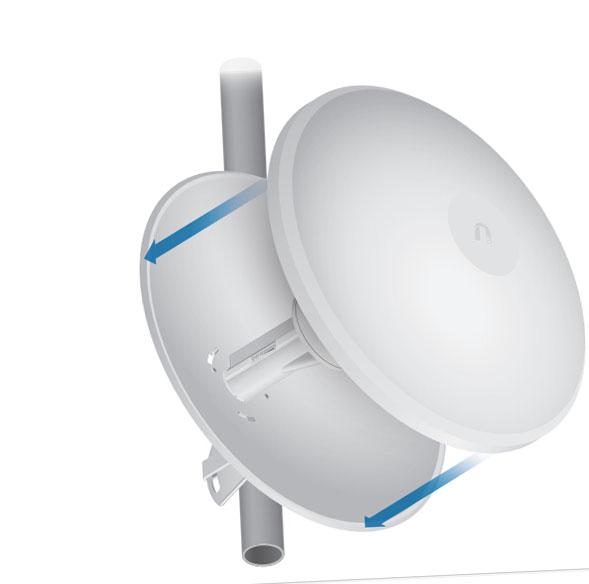

A protective radome is available as an optional accessory for the PBE-M2-400 and PBE-M5-400.
Innovative Mechanical Design
Built-in mechanical tilt
The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt.
Quick assembly
1.The number of fasteners was reduced to simplify assembly.
2.Tools are required only when the technician mounts the PowerBeam on the pole.
3.Easy removal The antenna feed can be detached with the push of a button.
Corrosion Resistance:
1.Fasteners GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners.
2.Dish and brackets Made of galvanized steel that is powder-coated for superior corrosion resistance.
3.The redesigned pole bracket for the 400 mm dish and fender washers for the 300 mm dish prevent paint from being removed from the metal brackets for improved corrosion resistance.
Specification:
| PBE-RAD-400 | |
|
Dimensions |
420 x 420 x 275 mm (16.54 x 16.54 x 10.83") |
|---|---|
|
Weight |
1.753 kg (3.87 lb) |
|
Memory |
64 MB |
|
Networking Interface |
10/100/1000 Mbps |
|
Antenna Gain |
25dBi |
|
LEDs |
Power, Ethernet, (4) Signal Strength |
|
Max. Power Consumption |
8W |
|
Output Power |
25 dBm |
|
Power Supply |
24VDC, 0.5A (Minimum) |
|
Power Method |
24V Passive PoE (Pairs 4, 5+; 7, 8-) |
|
ESD/EMP Protection |
± 24 kV Contact/Air |
|
Operating Temperature |
-40 to 70° C (-40 to 158° F) |
|
Operating Humidity |
5 to 95% Condensing |
|
Shock and Vibration |
ETSI300-019-1.4 |
|
Certifications |
CE, FCC, IC |
| Operating Frequency (MHz) | |
|
US/CA |
2412 - 2462 |
|---|---|
|
Worldwide |
2412 - 2472 |
