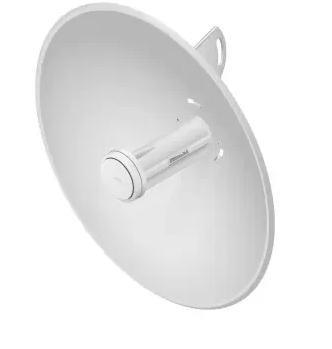

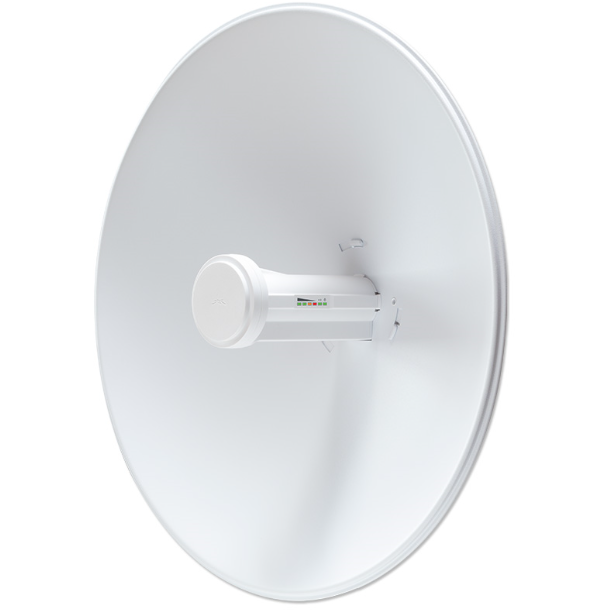

UBNT wireless network bridge PBE-M5-400 Gigabit network port high power high gain long distance bridge​

High noise resistance

Powerbeam makes the beam width of RF energy more compact. By focusing in one direction, powerbeam blocks or filters out noise in space, thus improving noise immunity. This function is particularly important in congested areas with the same or similar RF signals.

Integrated design

Innerfeeds from Ubiquiti ™ The technology integrates the wireless transmission system into the feeder horn of the antenna, so no cable is needed. Due to avoiding cable loss, the performance is improved.

Hardware overview

Innovative mechanical design

1.The built-in mechanical tilt fixture bracket easily provides up to 20 ° up and up to 20 ° down.

2.Rapid assembly reduces the number of fasteners and makes assembly easier.

3.Tools are required only if the technician is installing the powerbeam on the post.

4.It is easy to remove the antenna feed device by pressing a key.

Corrosion resistance

1.The corrosion resistance of the geomet coating is stronger than that of the galvanized fastener.

2.The dish and bracket are made of powder coated galvanized steel with strong corrosion resistance.

3.The redesigned post support for the 400 mm disc and the positioning washer for the 300 mm disc prevent the coating of the metal bracket from being removed, thus improving corrosion resistance.

Specification:
