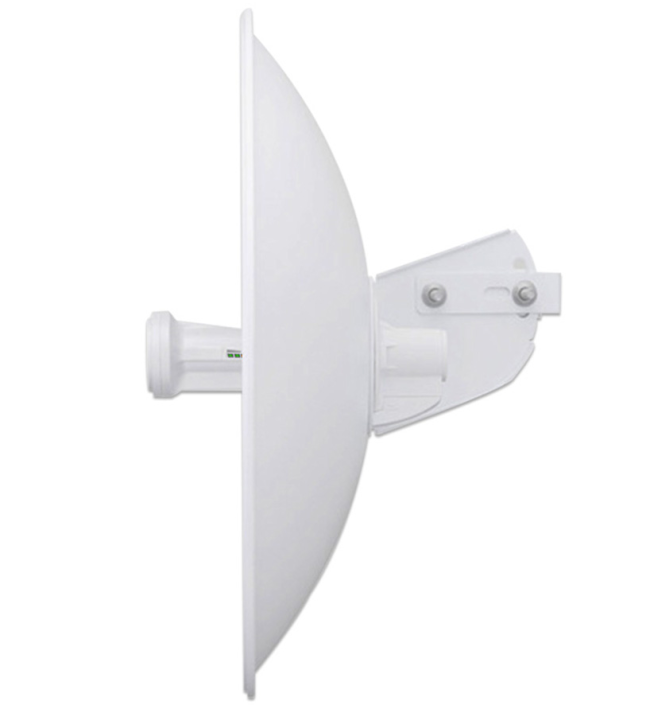

2475MHz 6W 2.4GHz Wireless Network Bridge PBE-M2-400
UBNT outdoor long-distance wireless network bridge PBE-M2-400 2.4GHz high power point-to-point bridge
High-Performance airMAX® Bridge
Incorporating a dish reflector design with advanced technology, the PowerBeam™ is the latest generation of Ubiquiti Networks® airMAX® CPE for customer locations.
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
Innovative Mechanical Design
1.Built-in mechanical tilt The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt.
2.Quick assembly The number of fasteners was reduced to simplify assembly.
3.Tools are required only when the technician mounts the PowerBeam on the pole.
4.Easy removal The antenna feed can be detached with the push of a button.
Specification:
| PBE-M2-400 | |
|
Dimensions |
420 x 420 x 289 mm (16.54 x 16.54 x 11.38") |
|---|---|
|
Weight |
1.795 kg (3.96 lb) |
|
Memory |
64 MB |
|
Networking Interface |
10/100 Mbps |
|
Antenna Gain |
18dBi |
|
LEDs |
Power, Ethernet, (4) Signal Strength |
|
Max. Power Consumption |
6W |
|
Output Power |
18dBm |
|
Power Supply |
24VDC, 0.5A (Minimum) |
|
Power Method |
24V Passive PoE (Pairs 4, 5+; 7, 8-) |
|
ESD/EMP Protection |
± 24 kV Contact/Air |
|
Operating Temperature |
-40 to 70° C (-40 to 158° F) |
|
Operating Humidity |
5 to 95% Condensing |
|
Shock and Vibration |
ETSI300-019-1.4 |
|
Certifications |
CE, FCC, IC |
| Operating Frequency (MHz) | |
|
US/CA |
2412 - 2462 |
|---|---|
|
Worldwide |
2412 - 2472 |
