AirGrid M5 5-7km 5.8G Wireless Bridge UBNT AG-HP-5G27
UBNT AG-HP-5G27 AirGrid M5 upgraded version 5.8G high power 5-7km wireless bridge

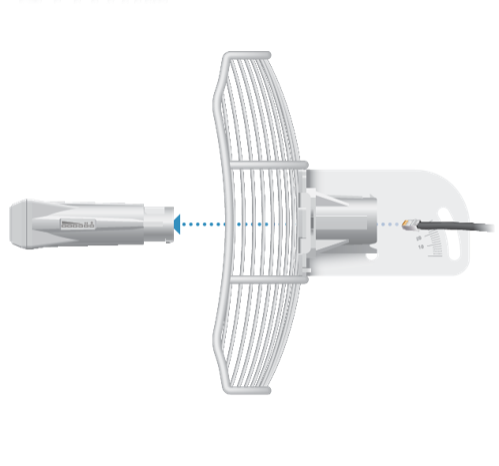

Installation Requirements
1.13 mm or ½" wrench
2.Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.
Hardware Overview
|
Signal Strength LEDs |
|---|
|
In airOS®, you can modify the wireless signal strength threshold values for each LED on the Advanced tab under Signal LED Thresholds.
|
|
Ethernet LED |
| The Ethernet LED will light steady green when an active Ethernet connection is made and flash when there is activity. |
|
Power LED |
| The Power LED will light green when the device is connected to a power source. |
| AG-HP-5G27 | |
|
Dimensions |
620 x 460 x 360 mm (24.41 x 18.11 x 14.17”) |
|---|---|
|
Weight |
2.59 kg (5.71 lb) |
|
Networking Interface |
(1) 10/100 Ethernet Port |
|
Enclosure |
Outdoor UV Stabilized Plastic |
|
Frequency |
5725 – 5850 MHz |
|
Gain |
27 dBi |
|
Output Power |
25 dBm |
|
Max. Power Consumption |
3W |
|
Power Supply |
24V, 0.5A PoE Adapter (Included) |
|
Power Method |
Passive Power over Ethernet (Pairs 4, 5+; 7, 8-) |
|
Max. VSWR |
1.5:1 |
|
Wind Survivability |
200 km/h (125 mph) |
|
Wind Loading |
34.7 N @ 200 km/h (7.8 lbf @ 125 mph) |
|
ETSI Specification |
EN 302 326 DN2 |
|
Shock and Vibration |
ETSI300-019-1.4 |
|
Operating Temperature |
-30 to 75° C (-22 to 167° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Certifications |
FCC, IC, CE |
