STM32F103RET6 CORTEXM3 512K 32 Bit Microcontroller
STM32F103RET6 ST Microcontroller 32-bit microcontroller CORTEXM3 512K flash memory LQFP-64
STMicroelectronics microcontroller, STM32F series, 64-pin, LQFP package, CAN channel number 1, ARM Cortex M3, surface mount mounting
STM32F103RET6 is a 32-bit high-density performance microcontroller unit that provides 3 12-bit analog-to-digital converters, 4 general-purpose 16-bit timers and 2 PMW timers, as well as standard and advanced communication interfaces, up to 2 I? C, 3 SPI and 2 I?S, 1 SDIO, 5 USART, 1 USB and 1 CAN. It contains 72MHz operating frequency, high-performance ARM® Cortex®-M0 32-bit RISC core, high-speed embedded memory And a variety of enhanced I/Os and peripherals connected to two APB buses. The 64-pin general-purpose microcontroller unit (MCU) contains 512kB of flash memory.
1.POR, PDR and programmable voltage detector
2.Low power-sleep, stop and standby mode
3.VBAT power supply for RTC and backup registers
4.12-channel DMA controller
5.Debug mode-serial wire debug (SWD) and JTAG interface
Detailed description:
| Item | MCU |
| Category | STM32F103RET6 |
| Core processor | ARM® Cortex®-M3 |
| Bit | 32-bits |
| Maximum clock frequency | 72MHz |
| Connector | CANbus,I²C,IrDA,LIN,SPI,UART/USART,USB |
| Number of input/output | 51 I/O |
| Memory size | 512KB |
| Type of memory | Flash |
| Date RAM size | 64KB |
| VCC/VDD | 2v~3.6v |
| Working temperature-minimun | -40℃ |
| Working temperature-max | +85℃ |
| Mounting | SMD |
| Package | 64-LQFP |

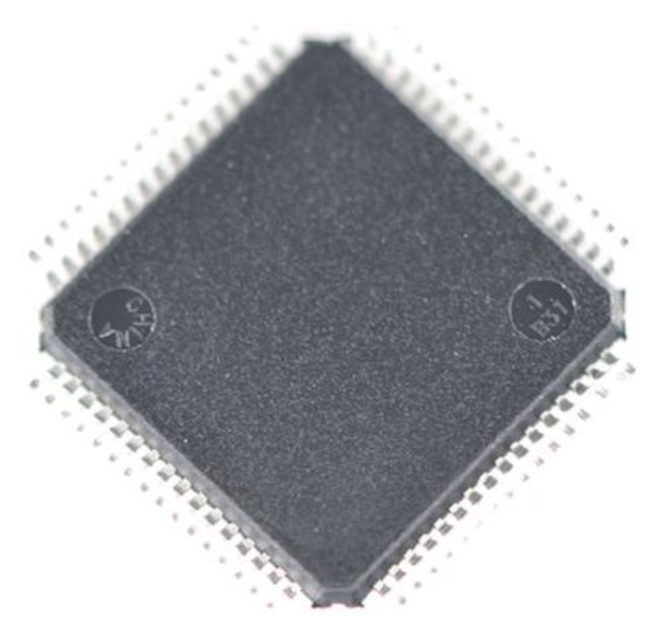

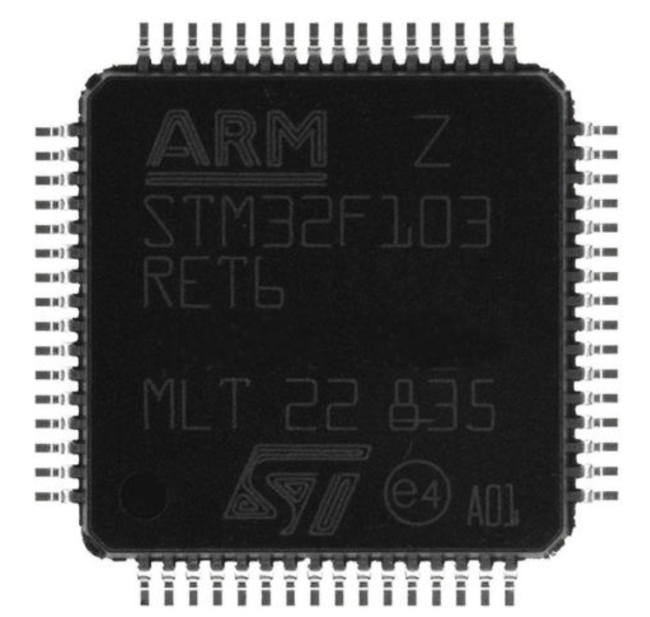

Picture details:
