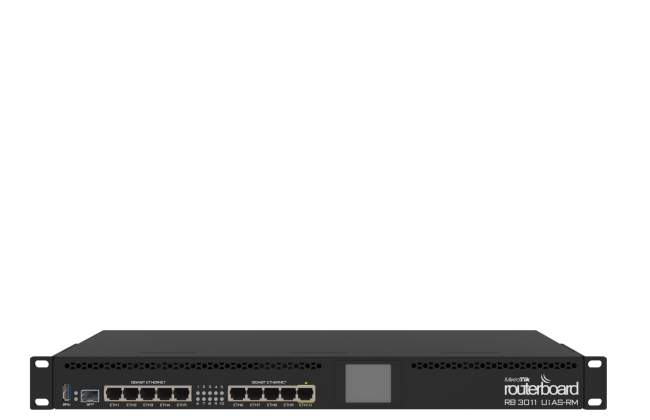

30W ROS Gigabit Wired Router Miklotik RB3011UiAS-RM
Miklotik RB3011UiAS-RM enterprise class high speed fiber broadband ROS Gigabit wired router
The RB3011 is a new multi port device, our first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a SuperSpeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.
RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.
1U rackmount, 10xGigabit Ethernet, SFP, USB 3.0, LCD, PoE out on port 10, 2x1.4GHz CPU, 1GB RAM, RouterOS L5
| Details | |
|---|---|
| Product code | RB3011UiAS-RM |
| Architecture | ARM 32bit |
| CPU | IPQ-8064 |
| CPU core count | 2 |
| CPU nominal frequency | 1.4 GHz |
| Dimensions | 443x92x44mm |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -20°C to 70°C |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| PoE out | Passive PoE |
| PoE-out ports | Ether10 |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-30 V |
| Max out per port output (input < 30 V) | 600 mA |
| Max total out (A) | 600 mA |
| Max power consumption | 30 W |
| Max power consumption without attachments | 10 W |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 10 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
