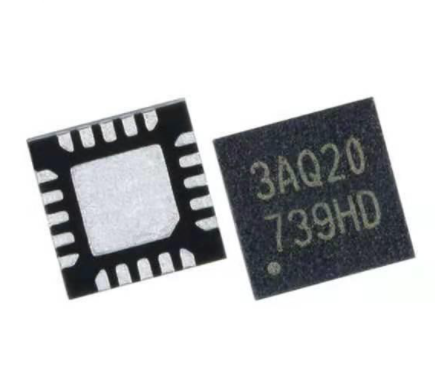

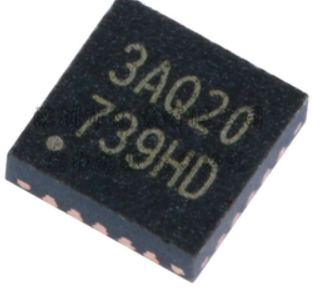

NUVOTON N76E003AQ20 2.4V 16MHz 8 Bit Microcontroller Chip
Xintang NUVOTON patch N76E003AQ20 single-chip microcomputer chip 8-bit microcontroller
Description: N76E003AQ20
N76E003AQ20 is Nuvoton High Speed 1T 8051 MCU series products, providing 18 KB flash ROM, configurable data flash memory and high-capacity 1 KB SRAM, supporting 2.4V to 5.5V wide operating voltage and -40 to 105 operating temperature, and causing high anti-interference Capability 7KV ESD / 4KV EFT. N76E003AQ20 provides up to 18 I/O pins in a 20-pin package; the surrounding includes dual sockets, SPI, I2C, and 6-channel PWM output; built-in similar products with a high accuracy of <2% error 16 MHz RC crystal oscillator and High-resolution 8-channel 12-bit ADC; and has functions such as self-awakening, under-voltage detection, etc.; TSSOP20 (4mm * 6.5mm) and QFN20 (3mm * 3mm) small packages are provided, which are both high efficiency and design flexibility.
Application areas: access control systems/alarms, temperature sensing equipment, Bluetooth speakers, electric car meters, digital voltmeters, gas detectors, collectors, chargers, beauty equipment, small household appliances, etc.
Product Description:
| Packaging | Tape & Reel (TR) |
|---|---|
| Part Status | Active |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, I²S, POR, PWM, WDT |
| Number of I/O | 18 |
| Program Memory Size | 18KB (18K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Data Converters | A/D 8x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (3x3) |
