30VDC 10AWG POE Gigabit Wired Router UBNT EdgePoint EP-R6

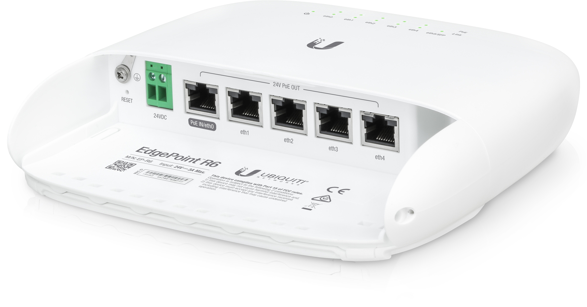

UBNT EdgePoint EP-R6 multi-service 5-port Gigabit wired router supports 24V POE
Installation Requirements
- Phillips screwdriver
- 7 mm socket wrench
- Ground wire – min. 10AWG (5 mm2) and max. length: 1 m. As a safety precaution, ground the EdgePoint to a grounded mast, pole, tower, or grounding bar.
- Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.
Power Options
Either the VDC input or PoE input is used at any one time. If both input types are connected, only the input type with the highest voltage will be used; the other can be used as a backup. Any of the input options can power any of the output options.
Power Input Options
- 24VDC, 3A
- 24V, 1.4A on eth0 (PoE In)
Power Output Options
- EdgePoint (required)
- Passive 24V, 2-Pair PoE on eth0-eth4
The number of devices that can be powered depends on the power consumption of the specific devices and the power input option. For example, if you provide 24VDC, 1.25A, then you have 30W of power. If the EdgePoint uses 7W (Max. Power Consumption), then you have 23W available for passive PoE output. Please check product specifications for the power consumption values to use in your calculations.
Specifications
| EP-R6 | |
|
Dimensions |
188.6 x 177.1 x 49.8 mm (7.43 x 6.97 x 1.96") |
|---|---|
|
Weight |
605 g (1.33 lb) |
|
Max. Power Consumption |
7W (Excludes PoE Output) |
|
Power Input |
(1) DC Terminal Block or (1) RJ45 (eth0) (Self-Correcting Polarity Protection on DC Terminal Block Only, |
|
Power Supply |
Min. 24V / 0.3A (Excludes PoE Output Power) |
|
VDC Input |
24V, 3A |
|
Passive PoE Input |
(1) 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) (Do NOT configure eth0 in PoE output mode |
|
Passive PoE Output |
(5) 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth0 to eth4 |
|
Power Monitoring |
(1) DC Terminal Block, Input Power (1) RJ45, eth0, Input Power |
|
Supported Voltage Range |
16 to 30VDC |
|
Button |
Reset |
|
LEDs |
|
| System | Power |
| eth0 to eth4 | Speed/Link/Activity, PoE |
| eth5/SFP | Speed/Link/Activity |
|
Ports |
|
| Data Ports | (5) 10/100/1000 RJ45 Ports (1) 1 Gbps SFP Port |
|
Processor |
Dual-Core 880 MHz, MIPS1004Kc with Hardware Acceleration for Packet Processing |
|
System Memory |
256 MB DDR3-1600 RAM |
|
Code Storage |
256 MB NAND |
|
Pole/Wall Mount |
Yes |
|
Operating Temperature |
-40 to 65° C (-40 to 149° F) |
|
Operating Humidity |
10 - 90% Noncondensing |
|
Certifications |
CE, FCC, IC |
