30dBi 5GHz Dish Antenna Dual Polarized Bridge UBNT RD-5G30-LW
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
UBNT
Product Description
UBNT dual-polarized bridge dish antenna RD-5G30-LW 30dBi gain 5GHz long-distance point-to-point

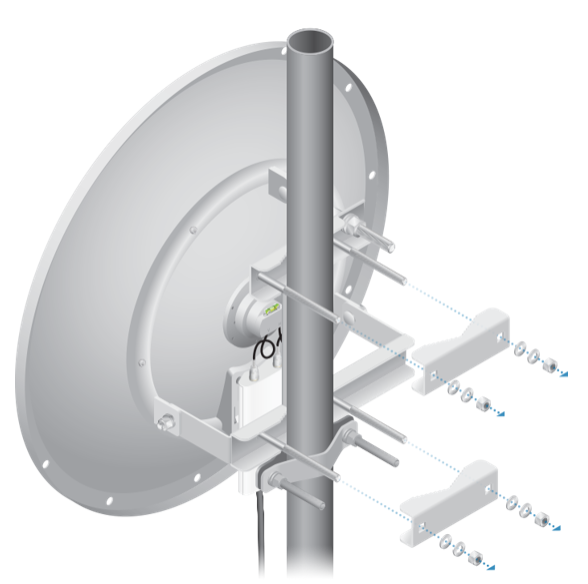

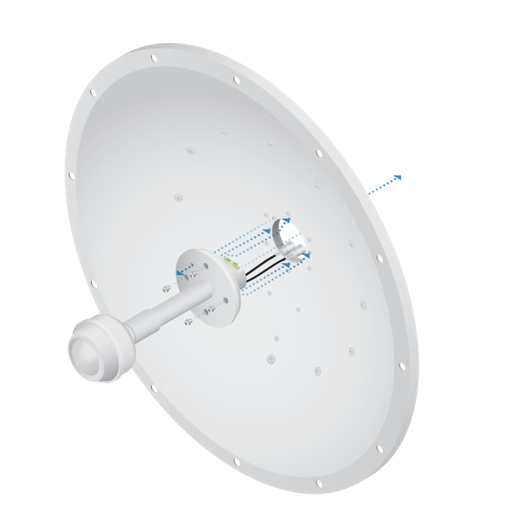

Installation Requirements
- 5 GHz Rocket® radio (sold separately)
- Phillips screwdriver
- 13 mm wrench
- Wrench or channel lock pliers with 63.5 mm (2.5") capacity
- Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable
Specifications
| RocketDish RD-5G30-LW | |
|
Dimensions |
650 x 650 x386 mm (25.6 x 25.6 x 15.2") |
|---|---|
|
Weight |
7.4 kg (16.31 lb) (Mount Included) |
|
Frequency |
5.1 - 5.9 GHz |
|
Gain |
30 dBi |
|
Max. VSWR |
1.6:1 |
|
Wind Survivability |
200 km/h (125 mph) |
|
Wind Loading |
790 N @ 200 km/h (178 lbf @ 125 mph) |
|
Polarization |
Dual Linear |
|
F/B Ratio |
30 dB |
|
ETSI Specification |
EN 302 326 DN2 |
|
Mounting |
Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included |
