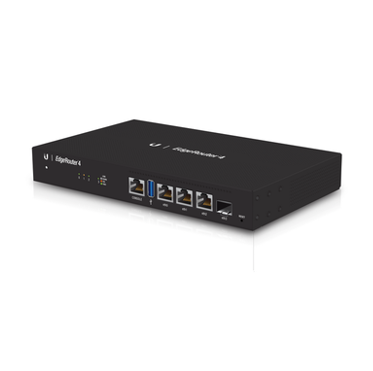

100VAC 13W Optical Fiber Wifi Router UBNT ER-4 EdgeMAX EdgeRouter
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
UBNT
Product Description
UBNT 4-port Gigabit wired router EdgeMAX EdgeRouter ER-4 Enterprise-level hardware acceleration
Installation Requirements
- Drill with a 6 mm drill bit (for wall-mounting)
- Phillips screwdriver
- For indoor applications, use Category 5 (or above) UTP cabling approved for indoor use.
- For outdoor applications, shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the power supply.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.
|
System LED |
|
|---|---|
| Flashing White | Bootup in progress. |
| White | Ready for use, not connected to Ubiquiti® Network Management System (UNMS™). |
| Blue | Ready for use, connected to UNMS. |
| Steady Blue with Occasional Flashing | Ready for use, unable to connect to UNMS, check connection to UNMS server. |
| Quickly Flashing Blue | Used to locate a device in UNMS. |
| Alternating Blue/White | Firmware upgrade in progress. |
|
RJ45 Speed/Link/Act LED (0 - 2) |
|
| Off | No Link |
| Amber | Link Established at 10/100 Mbps |
| Amber Flashing | Link Activity at 10/100 Mbps |
| Green | Link Established at 1000 Mbps (1 Gbps) |
| Green Flashing | Link Activity at 1000 Mbps (1 Gbps) |
|
SFP Link/Act LED (3) |
|
| Off | No Link |
| Green | Link Established at 1 Gbps |
| Green Flashing | Link Activity at 1 Gbps |
| RJ45 serial console port for Command Line Interface (CLI) management. | |
|
USB |
|
| Reserved for future use. | |
|
RJ45 Ports (eth0 - eth2) |
|
| RJ45 ports support 10/100/1000 Ethernet connections. | |
|
SFP Port (eth3) |
|
| SFP port is hot-swappable and supports Gigabit fiber SFP modules. | |
|
Reset Button |
|
| Click here to learn how to reset an EdgeRouter to factory defaults. | |
Specifications
| ER-4 | |
|
Dimensions |
229 x 136.5 x 31.1 mm (9.02 x 5.37 x 1.22") |
|---|---|
|
Weight |
795 g (1.75 lb) |
|
Max. Power Consumption |
13W |
|
Power Method |
Universal AC Power Cord (C13) |
|
Power Supply |
Internal AC/DC Power Adapter, 30W DC |
|
Supported Voltage Range |
100-240VAC, 50/60 Hz Universal Adapter |
|
Button |
Reset |
|
LEDs |
|
| Data Ports | Speed/Link/Activity |
| SFP Data Port | Link/Activity |
|
Processor |
4-Core 1 GHz MIPS64 |
|
System Memory |
1 GB DDR3 RAM |
|
On-Board Flash Storage |
4 GB eMMC, 8 MB SPI NOR |
|
ESD/EMP Protection |
Air: ± 24 kV, Contact: ± 24 kV |
|
Interfaces |
|
| Management | (1) RJ45 Serial Port (4) Ethernet Ports (Default eth0) |
| Networking | (3) 10/100/1000 RJ45 Ports (1) 1 Gbps SFP Port |
|
Operating Temperature |
-10 to 50° C (14 to 122° F) |
|
Operating Humidity |
10 - 90% Noncondensing |
|
Certifications |
CE, FCC, IC |
