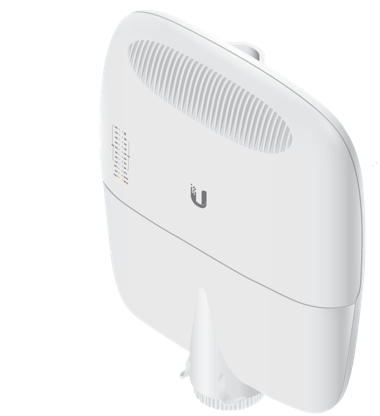

UBNT EdgePoint EP-R8 Gigabit multi-service three-layer router supports 24V POE output

Installation Requirements

• 7 mm socket wrench
• S2 hex wrench
• Ground wire – min. 10AWG (5 mm2) and max. length: 1 m. As a safety precaution, ground the EdgePoint to a grounded mast, pole, tower, or grounding bar.
• Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.

  We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.

Power Options

Either the VDC or PoE input type is used at any one time. If both are connected, only the input type with the highest voltage will be used; the other can be used as a backup.

Both PoE inputs can be used at the same time. If there is a voltage difference, the higher-voltage source will be used first. The voltage from the initial source will drop as the load increases. When the voltage drops to the same level as the lower-voltage source, then the lower-voltage source will also start providing power.

Power Input Options

• 54VDC, 6A
• 54V, 1.5A on eth0 (PoE In)
• 54V, 1.5A on PoE In

Power Output Options

• EdgePoint (required)
• Passive 54/24V, 4-Pair PoE on eth1-eth2
• Passive 24V, 2-Pair PoE on
  eth3-eth7

The number of devices that can be powered depends on the power consumption of the specific devices and the power input option. Example: If you provide 54VDC, 1.5A, then you have 81W of power. If the EdgePoint uses 40W (Max. Power Consumption), then you have 41W available for passive PoE output. Check product specifications for the power consumption values to use in your calculations.
