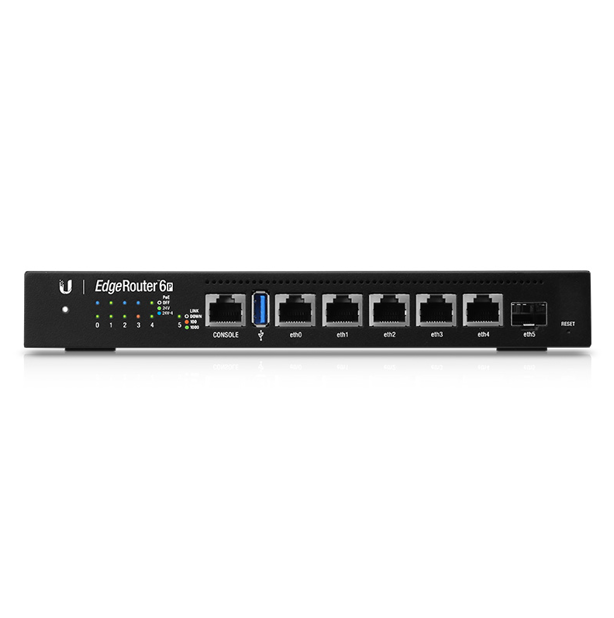

6 Port 240VAC 16W POE Gigabit Wired Router UBNT ER-6P
UBNT Gigabit wired PoE router ER-6P 6-port POE Gigabit wired router Carrier-grade NAT hardware acceleration 24V
Installation Requirements
- Drill with a 6 mm drill bit (for wall-mounting)
- Phillips screwdriver
- For indoor applications, use Category 5 (or above) UTP cabling approved for indoor use.
- For outdoor applications, shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the power supply.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.
EdgeRouter PoE
(1)Gigabit routing ports
(2) PoE configurable ports
(3)Supports 24V or 48V PoE
(4)ports configurable for switching
(5)1 million packets per second for 64-byte packets
Specifications
| ER-6P | |
|
Dimensions |
229 x 136.5 x 31.1 mm (9.02 x 5.37 x 1.22") |
|---|---|
|
Weight |
730 g (1.61 lb) |
|
Max. Power Consumption |
16W (Excludes PoE Output) |
|
Power Method |
External AC/DC Power Adapter, 60W (24V, 2.5A) (Included) |
|
Power Supply |
External AC/DC Adapter |
|
Passive PoE |
|
| Configurations | Off/24V 2-Pair/24V 4-Pair |
| Voltage Range | 24V |
| Max. Power per Port | 12W |
|
Supported Voltage Range |
100-240VAC, 50/60 Hz Universal Adapter 30-16V |
|
Button |
Reset |
|
LEDs |
|
| Data Ports | Speed/Link/Activity, PoE |
| SFP Data Port | Link/Activity |
|
Processor |
4-Core 1 GHz MIPS64 |
|
System Memory |
1 GB DDR3 RAM |
|
On-Board Flash Storage |
4 GB eMMC, 8 MB SPI NOR |
|
ESD/EMP Protection |
Air: ± 24 kV, Contact: ± 24 kV |
|
Interfaces |
|
| Management | (1) RJ45 Serial Port (6) Ethernet Ports (Default eth0) |
| Networking | (5) 10/100/1000 RJ45 Ports with PoE (1) 1 Gbps SFP Port |
|
Operating Temperature |
-10 to 50° C (14 to 122° F) |
|
Operating Humidity |
10 - 90% Noncondensing |
|
Certifications |
CE, FCC, IC |
| PoE with 24VDC Power Adapter | |
|
PoE Interfaces |
(5) 24V Passive PoE Ports, 2-pair (4, 5+; 7, 8-) and 4-pair |
|---|---|
|
Passive PoE Max. Wattage Per Port |
24W (24V, 1A, 4-pair) 12W (24V, 0.5A, 2-pair) |
|
Passive PoE Voltage Range |
24V |
