UBNT ER-12 20W 30VDC 10G Gigabit Wired Router AC/DC Adapter

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Brand: UBNT

Product Description

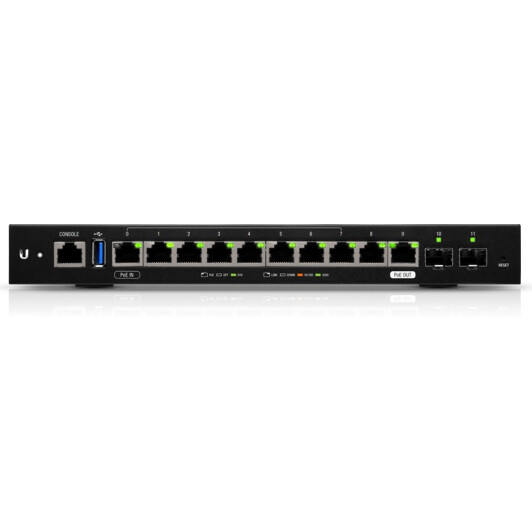

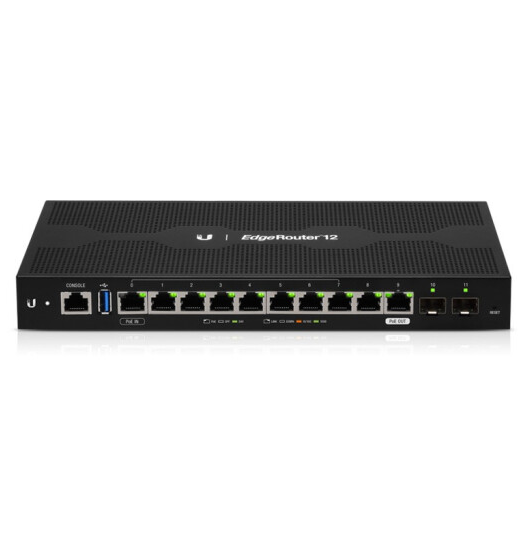

UBNT Gigabit wired router ER-12 enterprise-class 10 Gigabit ports 2 SFP fiber ports

Installation Requirements

Wall-mounting (optional)
- Drill with 6 mm drill bit
- Phillips screwdriver
For indoor applications, use Category 5 (or above) UTP cabling approved for indoor use.
For outdoor applications, shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the power supply.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.

System LED
Flashing White	Bootup in progress.
White	Ready for use, not connected to Ubiquiti® Network Management System (UNMS™).
Blue	Ready for use, connected to UNMS.
Steady Blue with Occasional Flashing	Ready for use, unable to connect to UNMS, check connection to UNMS server.
Quickly Flashing Blue	Used to locate a device in UNMS.
Alternating Blue/White	Firmware upgrade in progress.
RJ45 Speed/Link/Act LED (Ports 0 - 9)
Off	No Link
Amber	Link Established at 10/100 Mbps
Amber Flashing	Link Activity at 10/100 Mbps
Green	Link Established at 1000 Mbps
Green Flashing	Link Activity at 1000 Mbps
PoE LED
Off	No PoE
Green	24V 2-Pair Passive PoE Output
SFP Link/Act LED (Ports 10 - 11)
Off	No Link
Green	Link Established at 1 Gbps
Green Flashing	Link Activity at 1 Gbps
Console
RJ45 serial console port for Command Line Interface (CLI) management.
RJ45 (Ports 0 - 9)
All RJ45 ports can be used for routing and support 10/100/1000 Mbps Ethernet connections. Ports 0 - 7 can be configured for switching functions using the EdgeOS Configuration Interface. Port 0 supports 24V Passive PoE In and port 9 supports optional Passive PoE Out (disabled by default).
SFP (Ports 10 - 11)
SFP routing ports are hot-swappable and support Gigabit fiber SFP modules.
Reset Button
Click here to learn how to reset an EdgeRouter to factory defaults.

ER-12
Dimensions	268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22")
Weight	700 g (1.54 lb)
Max. Power Consumption	20W (Excludes PoE Output)
Power Method	External AC/DC Power Adapter, 24W (24V, 1A) (Included) 24V Passive PoE
Power Supply	External AC/DC Adapter
Passive PoE
Voltage Range	DC/PoE Passthrough
Max. Wattage per Port	20W (24V)
Supported Voltage Range	9 - 30VDC
Button	Reset
LEDs
System	Power
Data Ports	Speed/Link/Activity; PoE (Ports 0 and 9 only)
SFP Data Port	Link/Activity
Processor	4-Core 1 GHz MIPS64
System Memory	1 GB DDR3 RAM
On-Board Flash Storage	4 GB eMMC, 8 MB SPI NOR
ESD/EMP Protection	Air: ± 24 kV, Contact: ± 24 kV
Interfaces
Management	(1) RJ45 Serial Port (10) Ethernet Ports (Default Port 0)
Networking	(10) 10/100/1000 RJ45 Ports Port 0 Supports PoE IN; Port 9 Supports PoE Out (2) 1 Gbps SFP Ports
Operating Temperature	-10 to 50° C (14 to 122° F)
Operating Humidity	10 - 90% Noncondensing
Certifications	CE, FCC, IC

PoE
PoE Interfaces
PoE In	(1) 24V Passive PoE Port, 2-pair (4, 5+; 7, 8-)
PoE Out	(1) 24V Passive PoE Port, 2-pair (4, 5+; 7, 8-)
Passive PoE Max. Wattage Per Port	20W (24V, 0.83A)
Passive PoE Output	DC/PoE Passthrough
