Installation Requirements
- Phillips and flathead screwdrivers
- Standard-sized, 19" wide rack with an available 1U space
- For indoor applications, use Category 5 (or above) UTP cabling approved for indoor use.
- For outdoor applications, shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the power supply.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.
|
Management Power/Link LED |
|
|---|---|
| Off | No Power/No Link |
| Amber | After bootup, the LED indicates power. After an initial link is established, the LED indicates a 10/100 Mbps connection. If the link terminates, the LED turns off until a link is re-established. If the unit reboots, the LED will again indicate power until a link is established. |
|
RJ45 PoE LED (Ports 1 - 8) |
|
| Off | No Power over Ethernet |
| Green | 24V Power over Ethernet |
| Amber | 48V Power over Ethernet |
|
RJ45 Speed/Link/Act LED (Ports 1 - 8) |
|
| Off | No link |
| Amber | Link established at 10/100 Mbps |
| Amber Flashing | Link activity at 10/100 Mbps |
| Green | Link established at 1000 Mbps |
| Green Flashing | Link activity at 1000 Mbps |
|
Management Port |
|
| 10/100 Mbps port used to access the EdgeSwitch Configuration Interface. | |
|
USB Port |
|
| Reserved for future use. | |
|

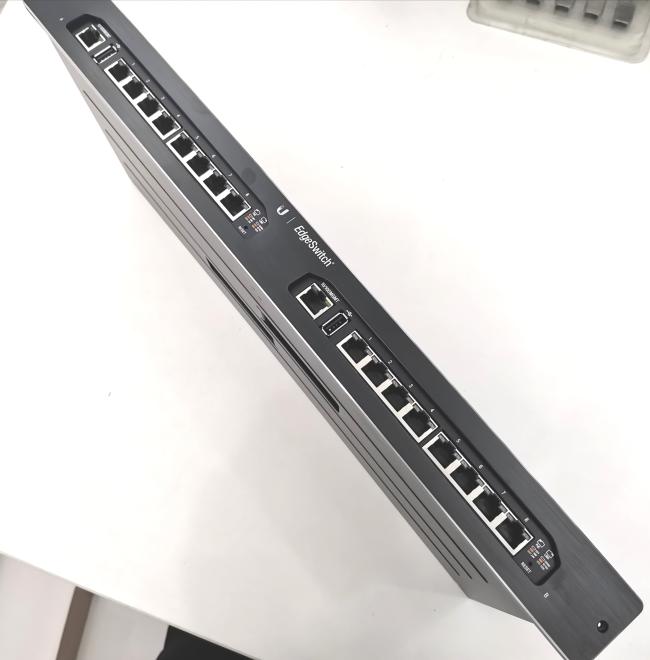

RJ45 (Ports 1 - 8) |
|
| 10/100/1000 Mbps ports for switching and PoE (also available for management by default). | |
|
Reset Button |
|
| To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the unit is powered on. | |
|
Power |
|
| Connect the included Power Adapter to the Power port. | |
Specifications
| ES-16XP | |
|
Dimensions |
480 x 44.5 x 186 mm (18.9 x 1.75 x 7.32") |
|---|---|
|
Weight |
3.95 kg (8.71 lb) |
|
Hardware Configuration |

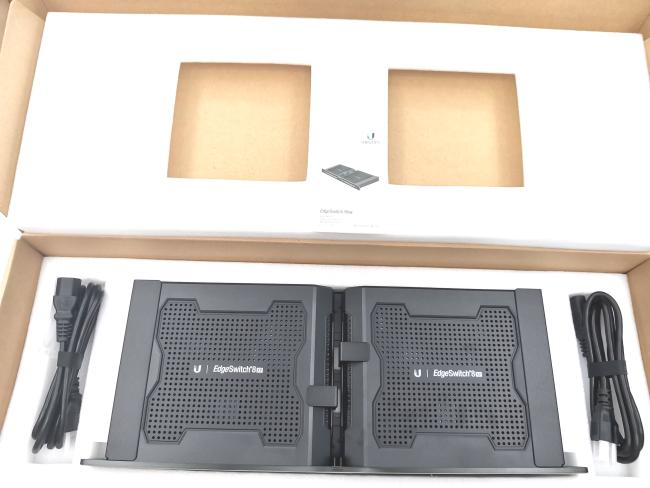

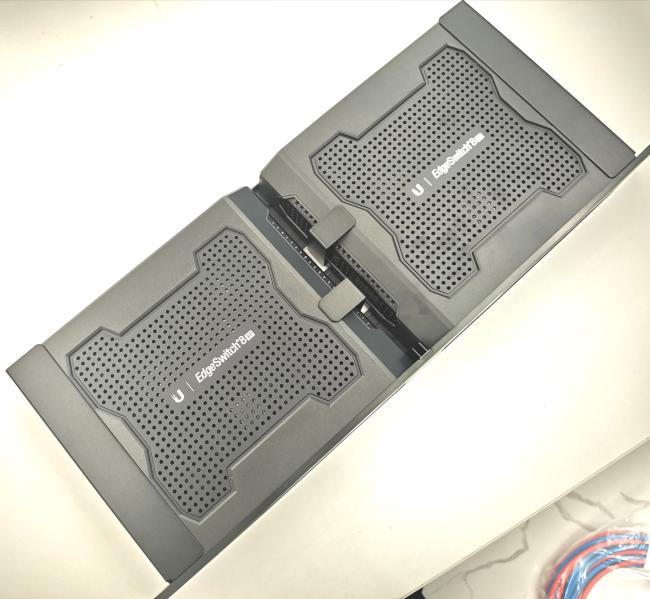

(2) 8-Port EdgeSwitch 8XP Devices |
|
Mounting |
19" 1U Rack-Mount |
| 8-Port ES-8XP* | |
|
Power Input |
100-240VAC |
|---|---|
|
Max. Power Consumption |
150W |
|
PoE Out Voltage Range |
45-48VDC / 22-24VDC |
|
Max. PoE Wattage Per Data Port |
11.5W (24V) 23W (48V) |
|
ESD Rating |
±24 kV Air/Contact |
|
PoE Method |
Passive |
|
Button |
Reset |
|
USB Port |
2.0 Type A (Reserved for Future Use) |
|
Processor |
MIPS 24K, 400 MHz |
|
System Memory |
64 MB |
|
Code Storage |
8 MB |
|
Certifications |
CE, FCC, IC |
|
Operating Temperature |
-25 to 55° C (-13 to 131° F) |
|
Operating Humidity |
90% Noncondensing |
|
PoE Configurable Per Port |
|
| Management Port | N/A |
| Data Ports | Off/24V/48V |
|
LEDs Per Port |
|
| Management Port | Power/Link |
| Data Ports | PoE, Speed/Link/Activity |
|
Networking Interfaces |
|
| Management Port | (1) 10/100 Ethernet Port |
| Data Ports | (8) 10/100/1000 Ethernet Ports |
* Specifications apply to each 8-Port EdgeSwitch ES-8XP unit.
