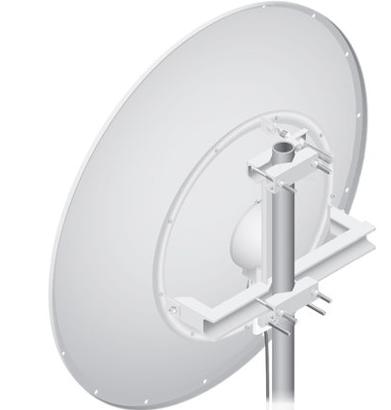

UBNT AF-5G34-S45 AF-5X Point-to-point microwave antenna 34dBi gain 45 degree dual polarization

Installation Requirements

• • 5 GHz airFiber radio (sold separately)

  • Phillips #1 screwdriver

  • 16 mm wrench

  • 24 mm wrench

  • Clear view of the sky for proper GPS operation

  • Mounting point:

    • At least 1 m below the highest point on the structure

    • For tower installations, at least 3 m below the top of the tower

  • Ground wire – min. 10 AWG (5 mm2) and max. length: 1 m. As a safety precaution, ground the airFiber radio to a grounded mast, pole, tower, or grounding bar.

• Shielded Category 6 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.

Specifications
