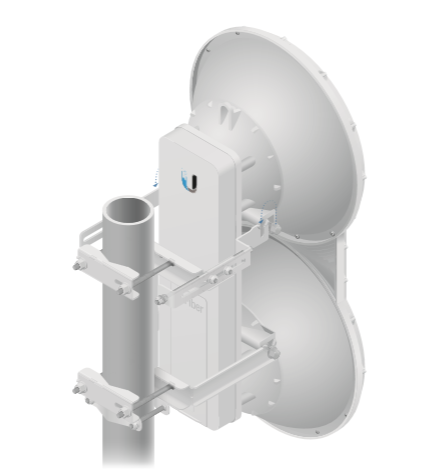

UBNT Networks AIRFIBER 24 GHz AF-24HD Outdoor Wireless Point to Point Radio

Installation Requirements

• 17 mm wrench

• 13 mm socket wrench or driver

• Clear line of sight between airFiber radios

• Clear view of the sky for proper GPS operation

• Mounting location with < 0.5° displacement due to twist and sway under wind loading

• Mounting point:

  • At least 1 meter below the highest point on the structure

  • For tower installations, at least 3 meters below the top of the tower

• Ground wires – min. 8 AWG (10 mm2) and max. length: 1 meter. As a safety precaution, ground the airFiber radios to grounded masts, poles, towers, or grounding bars.

  	WARNING: Failure to properly ground your airFiber units will void your warranty.

• (Recommended) 2 Outdoor Gigabit PoE surge protectors – Ubiquiti® Ethernet Surge Protector, model ETH-SP-G2.

  	Note: For guidelines about grounding and lightning protection, follow your local electrical regulatory codes.

• Outdoor, shielded Category 5e (or above) cabling and shielded RJ-45 connectors should be used for all wired Ethernet connections. Category 6 is required for installations with long cable runs (up to 100 m).

  We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.
