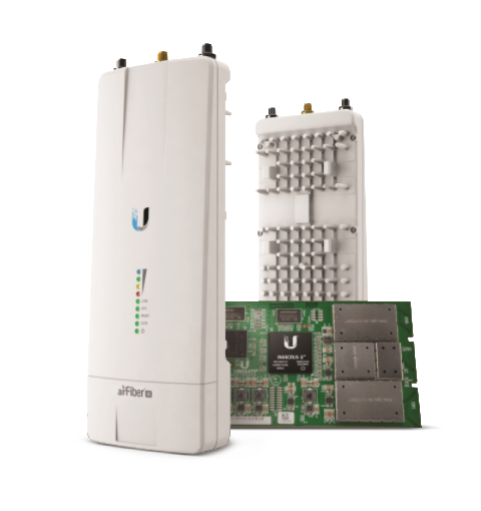

AF-2X Outdoor Wireless Airfiber Antenna 1000 Ethernet Port
UBNT airFiber AF-2X 24V/1A 29db POE Gigabit Adapter Outdoor Wireless antenna
Antenna Compatibility
The airFiber radio is designed for use with the following airFiber X antenna model:
-
AF-2G24-S45
The radio can also operate with the following RocketDish™ antenna model:
-
RD-2G24 (requires Universal Bracket)
Installation Requirements
-
-
Clear line of sight between airFiber radios
-
Clear view of the sky for proper GPS operation
-
Vertical mounting orientation
-
Mounting point:
-
At least 1 m below the highest point on the structure
-
For tower installations, at least 3 m below the top of the tower
-
-
Ground wires – min. 10 AWG (5 mm2) and max. length: 1 m. As a safety precaution, ground the airFiber radio to grounded masts, poles, towers, or grounding bars.
-
|
|
WARNING: Failure to properly ground your airFiber radio will void your warranty. |
|---|
-
-
(Recommended) 2 Outdoor Gigabit PoE surge protectors
-
|
|
Note: For guidelines about grounding and lightning protection, follow your local electrical regulatory codes. |
|---|
-
Outdoor, shielded Category 6 (or above) cabling and shielded RJ-45 connectors are required for all wired Ethernet connections.
Specifications
|
AF-2X |
|
|
Dimensions |
224 x 82 x 48 mm (8.82 x 3.23 x 1.89") |
|---|---|
|
Weight |
0.35 kg (0.77 lb) |
|
RF Connectors |
(2) RP-SMA Weatherproof (CH0, CH1) (1) SMA Weatherproof (GPS) |
|
GPS Antenna |
External, Magnetic Base |
|
Power Supply |
24V, 1A PoE Gigabit Adapter (Included) |
|
Power Method |
Passive Power over Ethernet |
|
Mounting |
Rocket Mount Compatible GPS Pole Mount (Included) |
|
Operating Temperature |
-40 to 55° C (-40 to 131° F) |
|
Certifications |
FCC Part 15.247, |
|

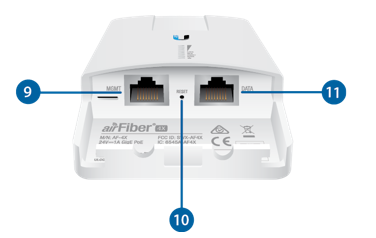

Networking Interface |
|
|
Data Port |
(1) 10/100/1000 Ethernet Port |
|
Management Port |
(1) 10/100 Ethernet Port |
|
System |
|
|
Maximum Throughput |
500 Mbps |
|
Encryption |
128-bit AES |
|
OS |
airOS F |
|
Wireless Modes |
Master/Slave |
|
Radio |
|
|
Operating Frequency |
2400-2500 MHz |
|
Max. Conducted TX Power |
29 dBm |
|
Frequency Accuracy |
± 2.5 ppm without GPS Synchronization |
