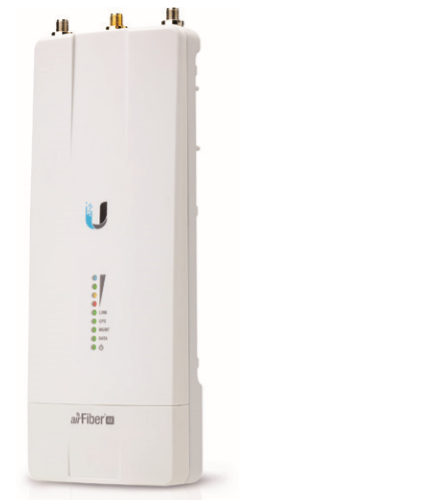

UBNT AF-4X 24V 1A POE Gigabit Airfiber Antenna Wireless Outdoor
UBNT airFiber AF-4X 4.9 GHz 24V/1A POE Gigabit Adapter Outdoor Wireless antenna
Up to 687 Mbps Real Throughput, Up to 200+ km Range
Optimal Use of 4.9 GHz Radio Band for Public Safety Sector
Antenna Compatibility
The airFiber AF-4X radio is designed for use with the following airFiber X antenna models:
- AF-5G30-S45
- AF-5G34-S451
The AF-4X can also operate with the following RocketDish™ antenna models:
- RD-5G302
- RD-5G342
1 Check your local/regional regulations for the maximum antenna gain allowed for your application.
2 Requires Universal Bracket (included) or AF-5G-OMT-S45 Conversion Kit (not included).
Installation Requirements
-
- Clear line of sight between airFiber radios
- Clear view of the sky for proper GPS operation
- Vertical mounting orientation
- Mounting point:
- At least 1 m below the highest point on the structure
- For tower installations, at least 3 m below the top of the tower
- Ground wires – min. 10 AWG (5 mm2) and max. length: 1 m. As a safety precaution, ground the airFiber radio to grounded masts, poles, towers, or grounding bars.
|
|
WARNING: Failure to properly ground your airFiber radio will void your warranty. |
|---|
-
- (Recommended) 2 Outdoor Gigabit PoE surge protectors
|
|
Note: For guidelines about grounding and lightning protection, follow your local electrical regulatory codes. |
|---|
- Outdoor, shielded Category 6 (or above) cabling and shielded RJ-45 connectors are required for all wired Ethernet connections.
Specifications
| airFiber AF-4X | |
|
Dimensions |
224 x 82 x 48 mm (8.82 x 3.23 x 1.89") |
|---|---|
|
Weight |
0.35 kg (0.77 lb) |
|
RF Connectors |
(2) RP-SMA Weatherproof (CH0, CH1) (1) SMA Weatherproof (GPS) |
|
GPS Antenna |
External, Magnetic Base |
|
Power Supply |
24V, 1A PoE Gigabit Adapter (Included) |
|
Power Method |
Passive Power over Ethernet |
|
Certifications |
FCC Part 15.407 CE EN 302502 v1.2.1, EN 301 893 v1.7.1 |
|
Operating Temperature |
-40 to 55° C (-40 to 131° F) |
|
Networking Interface |
|
| Data Port | (1) 10/100/1000 Ethernet Port |
| Management Port | (1) 10/100 Ethernet Port |
|
System |
|
| Processor | INVICTUS™ IC |
| Maximum Throughput | 500+ Mbps |
| Encryption | 128-bit AES |
| OS | airOS F |
| Wireless Modes | Master/Slave |
|
Radio |
|
| Operating Frequency | 4700-4990 MHz (Depends on Regulatory Region) |
| Max. Conducted TX Power | 24 dBm (Depends on Regulatory Region) |
| Frequency Accuracy | ± 2.5 ppm without GPS Synchronization ± 0.2 ppm with GPS Synchronization |
| Channel Bandwidth | 3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable* Programmable Uplink and Downlink Duty Cycles |
* Channel widths may vary according to country/region regulations.
