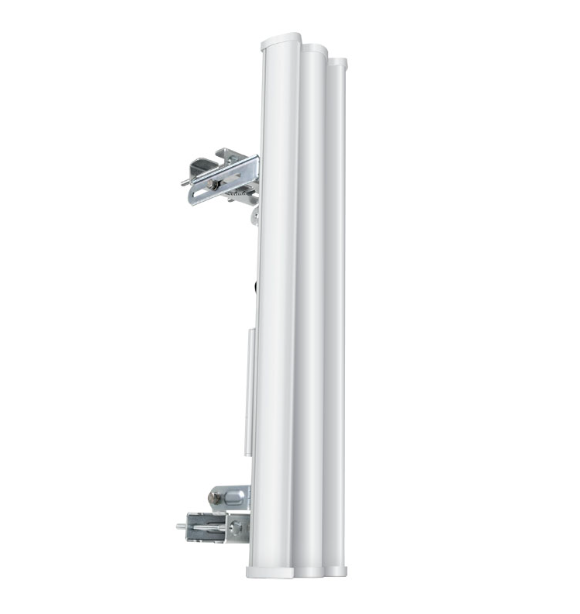

90 Degree Directional 5G Antena Wifi Sectoral AM-5G19-120
UBNT AM-5G19-120/AM-5G20-90 120 degree/90 degree sector dual polarization directional 5G antenna wifi coverage
Installation Requirements
-

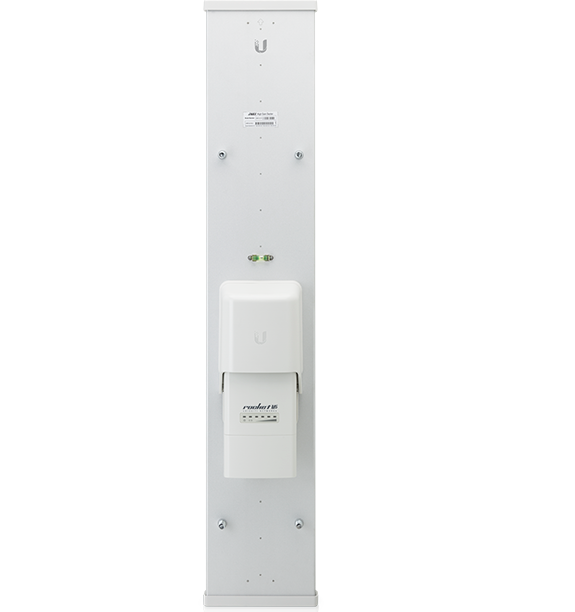

Rocket®M5 or RocketM5 GPS (sold separately)
-
12 mm and 13 mm wrenches
-
Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.
Specifications
|
AM-5G19-120/AM-5G20-90 |
|
|
Dimensions |
700 x 135 x 73 mm (27.56 x 5.32 x 2.87") |
|---|---|
|
Weight (Mount Included) |
5.9 kg (13 lbs) |
|
Frequency |
5.15 - 5.85 GHz |
|
Gain |
18.6 - 19.1 dBi |
|
HPOL Beamwidth |
123° (6 dB) |
|
VPOL Beamwidth |
123° (6 dB) |
|
Elevation Beamwidth |
4° |
|
Electrical Downtilt |
2° |
|
Max. VSWR |
1.5:1 |
|
Wind Survivability |
200 km/h (125 mph) |
|
Wind Loading |
137.9 N @ 200 km/h (31 lbf @ 125 mph) |
|
Polarization |
Dual Linear |
|
Cross-Pol Isolation |
28 dB Min. |
|
ETSI Specification |
EN 302 326 DN2 |
|
Mounting |
Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included |
