2.488Gbps Fiber Optic Modem Router High Performance GPON

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Brand: UBNT

Product Description

UBNT UF-Nano Gigabit Ethernet port wired optical modem GPON fiber

Introducing U®Fiber Nano from Ubiquiti Networks, a provider of fiber solutions utilizing Gigabit Passive Optical Network (GPON) technology.

GPON Optical Network Unit

The UFiber Nano G is a robust, high-performance GPON CPE that features an informational LED display and a sleek, sophisticated industrial design.

Features

· WAN: (1) GPON Port

· LAN: (1) Gigabit Ethernet Port

· GPON Speeds: 2.488 Gbps Downstream (RX), 1.244 Gbps Upstream (TX)

· Wavelengths: 1490 nm Downstream (RX), 1310 nm Upstream (TX)

· Display: Digital LED for Status Reporting

· Max. Power Consumption: 7W

· Power Method: 24V Passive PoE

· Mounting: Wall-Mountable (Indoor)

Specifications

UF-Nano
Dimensions	77 x 77 x 28 mm (3.03 x 3.03 x 1.1")
Weight	110 g (3.88 oz)

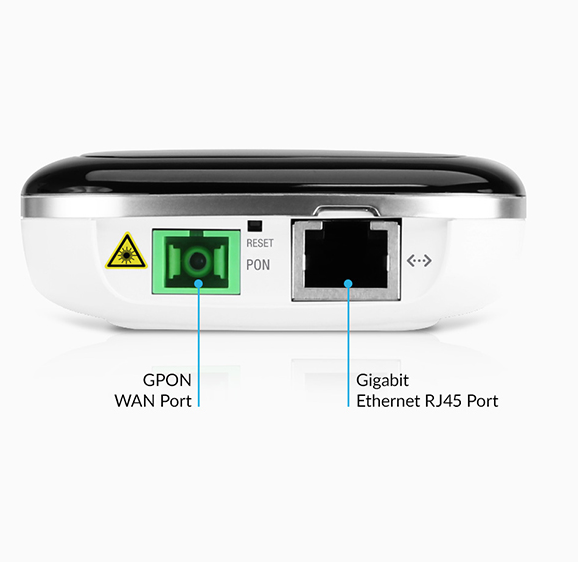

Networking Interfaces	(1) SC/APC, GPON WAN (1) RJ45, Ethernet LAN
Networking Interface Speeds	(1) GPON WAN, ITU G.984, 2.488 Gbps Downstream, 1.244 Gbps Upstream (1) GbE LAN, 10/100/1000 Mbps
Management Interface	In-Band Ethernet/PON
Normal Optical Power Range	TX (Class B+): 1.5 to 5 dBm RX: -8 to -28 dBm
Power Method	24V Passive PoE (Pins 4, 5+; 7, 8-) Dying Gasp Support
Power Supply	PoE Adapter: 24V, 0.3A
Max. Power Consumption	7W
Supported Voltage Range	20 to 28V
Processor Specs	MIPS-32, 240 MHz
Memory Information	128 MB DDR3
Buttons	(1) Display Information (1) Reset
Operating Temperature	-10 to 45° C (14 to 113° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
