HuaWei OSN8800 service board TN52UXCH 03021FSF WDM centralized cross processing board UXCH

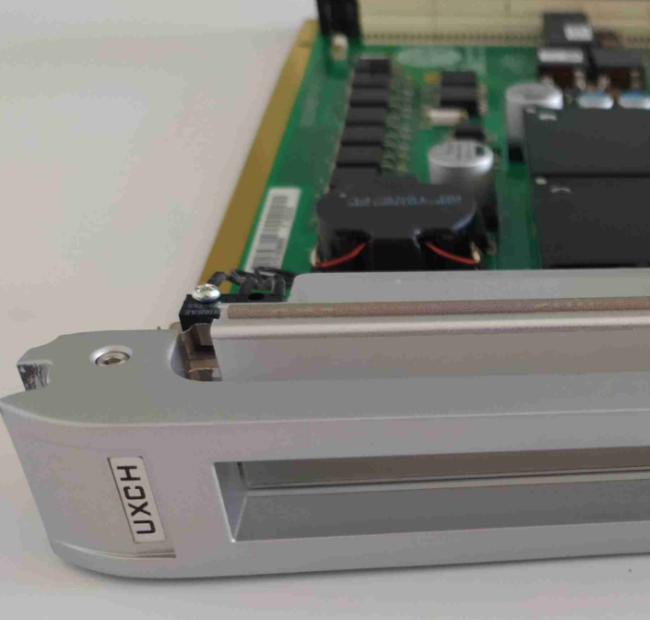

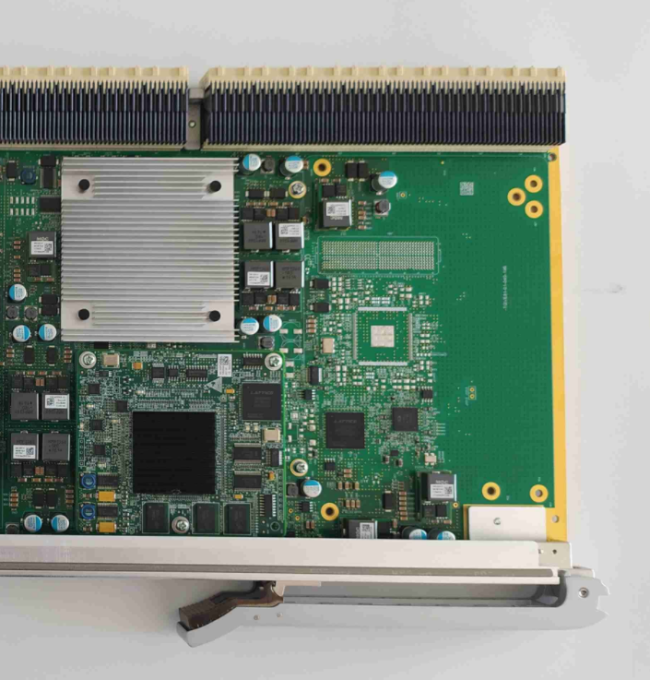

Overview of TN52UXCH
TN52UXCH is a universal cross connect board applied to Huawei OSN8800 T32, with cross-connect capacity of
3.2T ODUk, Packet, VC4. TN52UXCH part number is 03031FSF, and it has only one functional version TN52.
3.2T universal cross connect board (ODUk, PKT, VC4) on Huawei OSN8800 T32.
Enhanced OptiX OSN 8800 T32 subrack:
-
Cross-connects a maximum of 3.2 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals.
-
Performs packet switching of a maximum of 1.6 Tbit/s Ethernet services.
-
Cross-connects a maximum of 1.28 Tbit/s VC-4 signals.
-
Supports hybrid transmission of above-mentioned services with maximum cross-connect capacity of 3.2 Tbit/s.
General OptiX OSN 8800 T32 subrack:
-
Cross-connects a maximum of 2.56 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals.
-
Performs packet switching of a maximum of 640 Gbit/s Ethernet services.
-
Cross-connects a maximum of 1.28 Tbit/s VC-4 signals.
-
Supports hybrid transmission of above-mentioned services with maximum cross-connect capacity of 2.56 Tbit/s.
Supports cross-connection 1+1 protection.
Provides 1+1 hot backup.
Provides 1+1 warm backup.
Supports the manual switching and auto switching.
Supports the non-revertive switching.
Supports electrical-layer ASON.
Specifications of TN52UXCH
| Valid Slot | |
| OSN 8800 T32 subrack: IU9, IU10 | |
| Mechanical Specifications | |
| Dimensions(mm) | 581.8(H) x 27.9(W) x 220(D) |
| Weight(kg) | 3.9 |
Related specifications
| Specifications | OptiX OSN 8800 UPS | OptiX OSN 8800 T16 | OptiX OSN 8800 T32 | OptiX OSN 8800 T64 |
| Dimensions (H x W x D) | 397 mm x 442 mm x 291 mm | 450 mm x 498 mm x 295 mm | 900 mm x 498 mm x 295 mm | 900 mm x 498 mm x 580 mm |
| Number of Service Slots | 16 | 16 | 32 | 64 |
| Switching Capability | 1.6T ODUk, 640G VC4 & 20G VC3 & VC12, 800G Packet | 3.2T ODUk, 1.28T VC4 & 80G VC3 & VC12, 1.6T Packet | 6.4T ODUk, 1.28T VC4 & 80G VC3 & VC12 | |
| Channel Spacing |
50 GHz to 100 GHz fixed grid for 40 to 80 wavelengths 37.5 GHz to 400 GHz flex grid |
|||
| Rate per Channel (maximum) | 100 GE, 200 GE, 400 GE | |||
| Wavelength Range | DWDM: 1,529.16 nm to 1,560.61 nm (C band, ITU-T G.694.1) | |||
| Power Supply | -48V DC to -60V DC | |||
