Outdoor Point To Point 256MB 2.4GHz Dual Band Wifi Bridge CPE RBLHG-2nD / LHG
Outdoor Point To Point 256MB 2.4GHz Dual Band Wifi Bridge CPE RBLHG-2nD / LHG

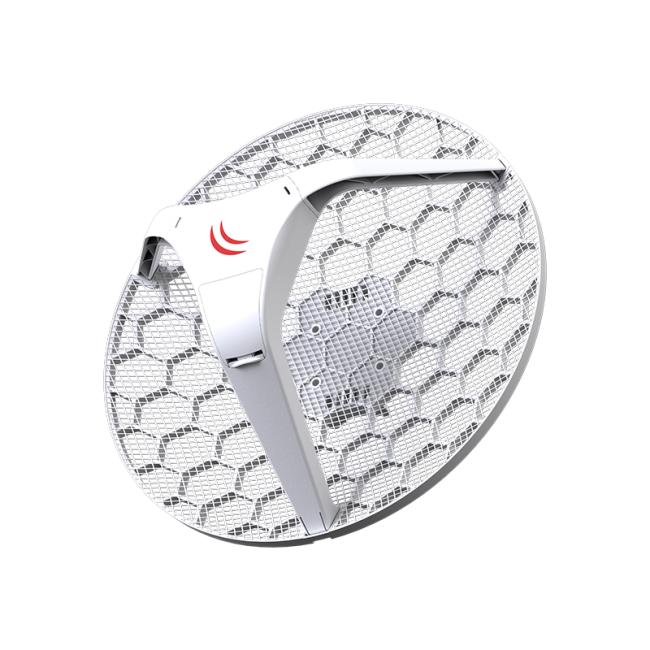

Mikrotik RBLHG-2nD /LHG 2 outdoor point-to-point 2.4GHz wireless bridge CPE
Overview of RBLHG-2nD /LHG 2
The LHG 5 ac is a compact and light 5GHz 802.11ac wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.
The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.
- LHG 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- LHG 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications of RBLHG-2nD /LHG 2
|
Features / filters |
|
|
Working frequency |
2.4 GHz |
|
Number of LAN ports |
1x [10/100M (RJ45)] |
|
Maximum wireless transmission speed |
300 Mb/s |
|
LAN standard |
Fast Ethernet 10/100Mb/s |
|
Wireless network standards |
|
|
CPU frequency |
650 MHz |
|
RAM |
64MB |
|
The type of power supply to the device |
Passive PoE |
|
Device type |
Client device |
|
Antenna gain |
11dBi - 20dBi |
|
Basic technical parameters |
|
|
Product code |
RBLHG-2nD |
|
Architecture |
MIPSBE |
|
CPU |
QCA9533 |
|
The number of processor cores |
1 |
|
Processor nominal frequency |
650 MHz |
|
Dimensions |
391 mm x 222 mm |
|
Beam width |
18° |
|
License level |
3 |
|
Operating system |
RouterOS |
|
RAM size |
64 MB |
|
Storage size |
16 MB |
|
Storage type |
Flash |
|
The range of the tested ambient temperature |
-40 ° C to 70 ° C |
|
PoE-in |
Pasywne PoE |
|
Input PoE, voltage |
10-30 V |
|
Number of DC inputs |
1 (PoE-IN) |
|
Maximum power consumption |
5 W |
|
Maximum transmission speed - wireless 2.4 GHz |
300 Mbit/s |
|
The number of 2.4 GHz wireless chains |
2 |
|
2.4 GHz wireless standards |
802.11b/g/n |
|
Antenna gain for 2.4 GHz |
18 dBi |
|
Antenna gain for 2.4 GHz |
QCA9533 |
|
2.4 GHz wireless generation |
Wi-Fi 4 |
|
Ethernet ports |
1 x RJ-45 Fast Ethernet 10/100 Mb / s port |
|
Polarization |
Dual, vertical and horizontal (dual-chain) / 2x2 MIMO |
|
Jurisprudence |
CE/RED, FCC, IC, EAC, ROHS |
