China FGLT A 16 Port GPON PON Board Alcatel Bell 7360 OLT Business Board for sale

FGLT A 16 Port GPON PON Board Alcatel Bell 7360 OLT Business Board

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: 5-8days

Brand: Alcatel Bell

Product Description

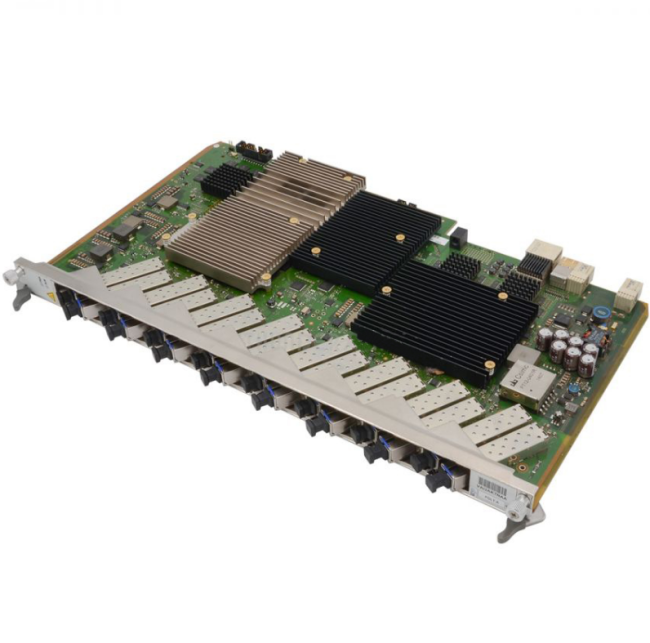

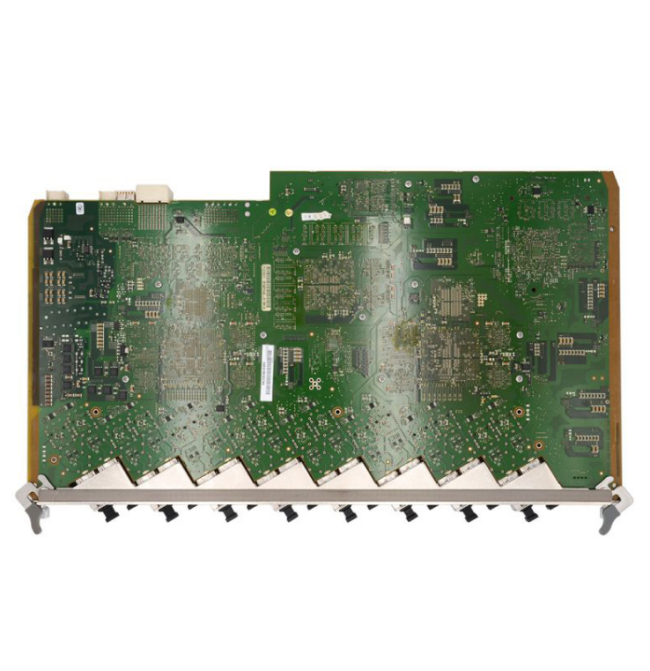

FGLT A 16 Port GPON PON Board Alcatel Bell 7360 OLT Business Board

Original new Alcatel Bell 7360 OLT business board FGLT-A 16 port GPON PON board

Overview of FGLT-A

The FGLT-A is a GPON line termination board. This board can be installed in a 7360 ISAM FX subrack. It meets ETSI and ANSI requirements and is intended for CO in ISAM FX equipment.

The FGLT-A provides termination of 16 GPON ports (2.488 Gbps downstream and 1.244 Gbps upstream). SFP (Small Form Factor Pluggable) GPON optical modules can be plugged in on the FGLT-A board.

FGLT-A board datasheet

Item	FGLT-A
GPON Port	16-GPON Port
Type	C+ Module: Single Fiber Bidirectional Optical Module, Class C+
Operating Wavelength	Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type	SFP
Port Rate	Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Minimun Output Optical Power	C+ Module : 3.00 dBm
Maximum Output Optical Power	C+ Module : 7.00 dBm
Maximum Receiver Sensitivity	C+ Module : -32.00 dBm
Optical Connector Type	SC/PC
Optical Fiber Type	Single-mode
Reach	30km/60km (18.6mi/37.3mi)
Overload Optical Power	C+ Module : -12.0 dBm
Extinction Ratio	8.2 dB
Weight	1.4kg
Dimensions (W x D x H)	405 mm x 225mm x 25 mm

Similar Products

PN.	Model	Description
3FE64991AB	Alcatel-Lucent NOKIA 7360 ISAM FX-4	Alcatel-Lucent NOKIA 7360 ISAM FX-4 with 2FANT-F NT card, and 1NGFC-G power unit, provides 4 service slots and supports a non-blocking, 2*100Gb/s per slot, VDSL2, point-to-point, GPON, EPON (with DPoE) and 10G PON services
3FE67229AB	Alcatel-Lucent NOKIA 7360 ISAM FX-8	Alcatel-Lucent NOKIA 7360 ISAM FX-8 with 2xFANT-F, 1xNGFC-E, provides 8 service slots and supports 2x100 Gb/s per slot, VDSL2 with vectoring, GPON, EPON (with DPoE) and 10G PON services
FGLT-B	FGLT-B	Alcatel-Lucent NOKIA 7360 ISAM FX 16-port GPON OLT line termination board with C+ module
