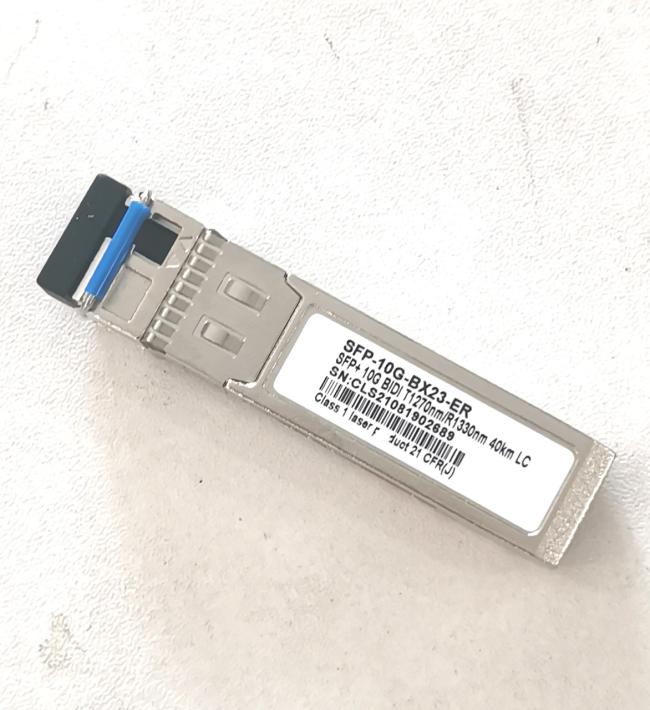

SFP-10G-BX23-ER Fiber Optic Module SFP 10G BIDI T1270nm R1330nm 40km
SFP-10G-BX23-ER Fiber Optic Module SFP 10G BIDI T1270nm R1330nm 40km
Compatible module SFP-10G-BX23-ER paired SFP+10G BIDI T1270nm/R1330nm 40km LC optical fiber transmission module
Description
Features
* Supports 10GbE Application at the Data-Rate of 9.953Gbps to 10.3125Gbps
* Maximum link length of 40km with SMF
* 1550nm cooled EML laser and PIN photodiode
* XFP MSA package with duplex LC connector
* XFI High Speed Electrical Interface
* +5V, +3.3V power supply
* Power dissipation <3.5W
* 2-wire interface for management and diagnostic monitor
* Compatible with RoHS
* Compatible with IEEE 802.3ae 10 Gigabit Ethernet
* Compatible with SONET OC-192/SDH STM-64
Applications
* SONET(OC-192)/SDH(STM64) line card
* 10GE Ethernet switches and routers
* 10GE Core-routers
* 10GE Storage
* Inter Rack Connection
* Other high speed data connections
Indicator
| Project | The indicator value |
|---|---|
| Basic information | |
| The name of the module | SFP-10G-ER-1310 |
| Part code | 02311RLX |
| Model | SFP-10G-ER-1310 |
| encapsulation | SFP+ |
| Interface standards | Non-standard, compatible with 10Gbase-ER |
| The connector type | LC |
| The fiber type | SMF |
| Working shell temperature | 0°C~70°C |
| Transfer rate (bit/s) | 10 Gbit/s |
| Target Transfer Distance (km) | Single-mode fiber: 40km |
| Send end light parameters | |
| Center Wavelength (nm) | 1310nm |
| Maximum transmit optical power (dBm) | 4.0dBm |
| Minimum sending optical power (dBm) | -2.0dBm |
| Minimum extinction ratio (dB) | 3.5dB |
| The receiver light parameter | |
| Receive Sensitivity (dBm) | -20dBm |
| Overloaded optical power (dBm) | -7.0dBm |
|
Illustrate:
The SFP-10G-ER-1310, if docked with the 10Gbase-ER standard light module (1550nm, 10GE, 40km), has a maximum transmission distance of only 20km due to specifications such as wavelength and reception sensitivity. Must be used on devices with V200R010C00 and later. |
|
