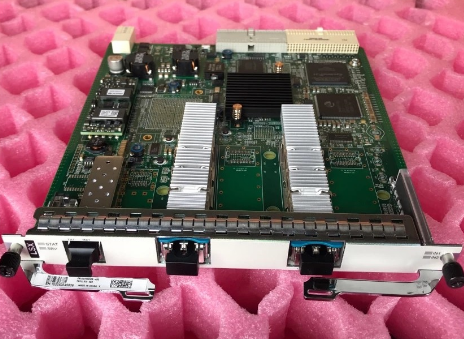

Descriptions of TNF2LSX
Serves as a wavelength conversion board that maps one channel of 10 Gbit/s service signals into OTU2 or OTU2e signals and performs conversion between the 10 Gbit/s service signal and WDM signals that comply with ITU-T Recommendations.
Service of TNF2LSX
Client service <------>LSX<-------->OADM
Client: 10GE LAN/10GE WAN STM-64/OC-192 FC800/FICON8G/FC1200/FICON10G
OADM: OTU2/OTU2e
Mechanical Specifications of TNF2LSX
| Boards | Weight (kg/lb. | Typical Power Consumption (W) | Maximum Power Consumption(W) |
| TNF2LSX | 0.75 (1.65) | 17.3 | 17.9 |
Slot of TNF2LSX
| Single-slot board | |
| OptiX OSN 1800 I Compact | Slot 1, Slot 3, Slot 4 |
| OptiX OSN 1800 II Compact | Slot 1 to Slot 6 |
| OptiX OSN 1800 II Enhanced | Slot 1 to Slot 6 |
| OptiX OSN 1800 V | Slot 1 to Slot 14, Slot 19 |
Function of TNF2LSX
| Function | Description |
| ALS | Supported when non-OTU2 services are provisioned on the client side |
| PRBS | Supported when the client-side service type is 10GE LAN/10GE WAN/STM-64/OC192/OTU2/OTU2e |
| FEC coding |
On the client side: •Supports FEC only when the client side service type is OTU4. On the WDM side: •TNF1LSCT75: Supports SDFECM. •TNF1LSCT65: Supports SDFEC2. •TNF1LSC equipped with WDM-side grey optical modules: Supports FEC. |
| ESC | Supported |
| LPT | Supported when the client-side service type is 10GE LAN |
| Tunable wavelength | Supported |
| Protection | Client 1+1 /Intra-board 1+1 protection /ODU2 SNCP protection |
| Non-Intrusive Monitoring Function | Supported |
| RMON function | Monitors the RMON performance of 10GE LAN services. |
| Alarms and performance events monitoring | Supported |
| Client-Side |
| Multi-rate-10/40 km-SFP+ 10G BASE-SR/LR 10 Gbit/s Multi-rate-BIDI-10km-SFP+ (SM1270/ SM1330) 11.3 Gbit/s Multirate-TX1330/RX1270nm-40km-SFP+ 11.3 Gbit/s Multirate-TX1270/RX1330nm-40km-SFP+ |
| WDM Side |
| 10Gbit/s Multi-rate-10/40/80 km 1600/1400 ps/nm-fixed-APD-XFP 800ps/nm-tunable-PIN-TXFP 800ps/nm-fixed-PIN-XFP 10 Gbit/s Multirate-TX1330/RX1270nm-10/40 km-XFP 10 Gbit/s Multirate-TX1270/RX1330nm-10k/40 m-XFP -400 to 1600ps/nm-tunable-APD-XFP |
