PS 5AC 45 Gigabit Outdoor Wireless Surveillance System Wireless Bridge Anti-Noise
UBNT PS-5AC-45 Gigabit wireless bridge AC high-power airprism anti-noise and anti-interference POE
Product description

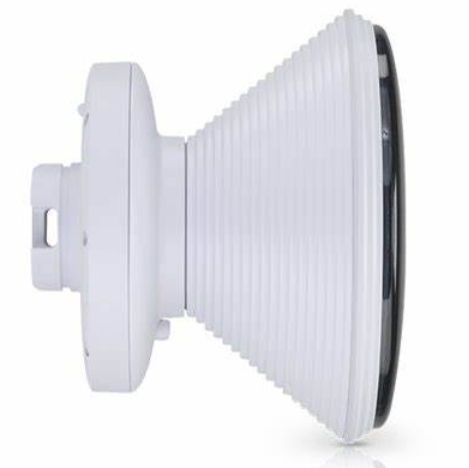

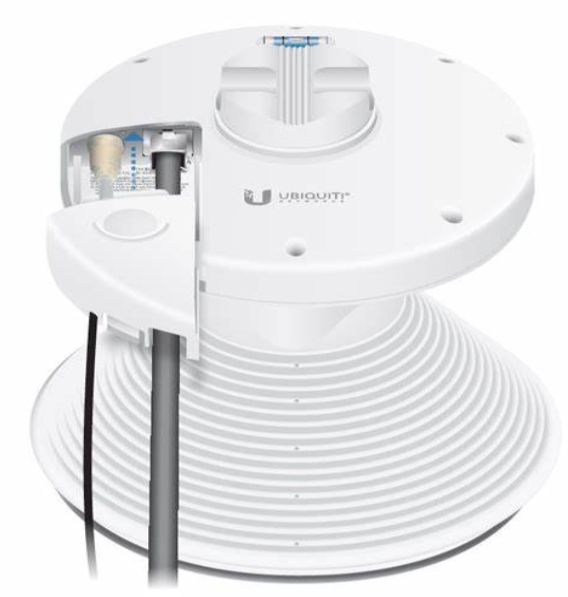

Ubiquiti PrismStation 5AC 45
The PrismStation 5AC-45 provides high isolation solutions in fixed beamwidth increments through interchangeable horn antennas that have been optimized for an urban environment. The tailored antenna radiation patterns spatially filters both in-band and out-of-band spurious RF emissions to increase the noise immunity of the PrismStation 5AC. This feature is especially important in an increasingly congested RF environment.
Specifications
| PS-5AC-45 | |
|
Dimensions |
174 x 174 x 184 mm (6.85 x 6.85 x 7.24") |
|---|---|
|
Weight (Mount Included) |
1.07 kg |
|
Gain |
22 dBi |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port |
|
Enclosure |
Outdoor UV Stabilized Plastic |
|
Max. Power Consumption |
10W |
|
Power Supply |
24V, 1A Gigabit PoE Adapter (Included) |
|
Power Method |
Passive PoE (Pairs 4, 5+; 7, 8-) |
|
Wind Survivability |
200 km/h (125 mph) |
|
Wind Loading |
200.2 N @ 200 km/h (45 lbf @ 125 mph) |
|
Mounting |
Pole Mounting Kit Included |
|
Operating Temperature |
-40 to 70° C (-40 to 158° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Shock and Vibrations |
ETSI300-019-1.4 |
|
Certifications |
CE, FCC, CCC |
| Operating Frequency (MHz) | ||
|
Worldwide |
5150 - 5875 | |
|---|---|---|
|
US/CA |
U-NII-1 |
5150 - 5250 |
|
U-NII-2A |
5250 - 5350 | |
|
U-NII-2C |
5470 - 5725 | |
|
U-NII-3 |
5725 - 5850 | |
