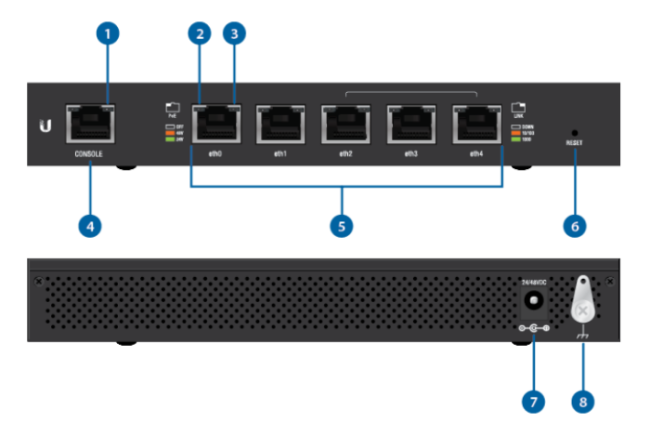

Hardware Overview
|
1. Power LED |
|
|---|---|
| Green | EdgeRouter Powered On |
|
2. RJ45 PoE LED (eth0 - eth4 Ports) |
|
| Off | No Power over Ethernet |
| Green | 24V Power over Ethernet |
| Amber | 48V Power over Ethernet |
|
3. RJ45 Speed/Link/Activity LED (eth0 - eth4 Ports) |
|
| Off | No Link |
| Amber |
Link Established at 10/100 Mbps Flashing Indicates Activity |
| Green |
Link Established at 1000 Mbps Flashing Indicates Activity |
|
4. Console Port |
|
| RJ45 serial console port for Command Line Interface (CLI) management. | |
|
5. RJ45 (eth0 - eth4 Ports) |
|
| All ports can be used for routing and support 10/100/1000 Mbps connections with configurable PoE settings. eth2, eth3, and eth4 can be configured for switching using the EdgeOS Configuration Interface. | |
|
6. Reset Button |
|
| Click here to learn how to reset the EdgeRouter to factory defaults. | |
|
7. Power Port |
|
| Connect the included Power Adapter to the Power port. | |
|
8. Grounding Point |
|
| Ground bonding point for an optional ground wire. | |
Specifications
| ERPoe-5 | |
|
Dimensions |
200 x 90 x 30 mm (7.87 x 3.54 x 1.18") |
|---|---|
|
Weight |
360 g (12.7 oz) |
| Max. Power Consumption | 60W |
| Power Method | External AC/DC Power Adapter, 60W (24V, 2.5A) (Included) |
| Power Supply | External AC/DC Adapter |
| Supported Voltage Range | 38 - 54VDC |
|
Power Input |
24VDC / 48VDC (48VDC, 1.25A Power Adapter Included) |
|
Button |
Reset |
|
Processor |
Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing |
|
System Memory |
512 MB DDR2 RAM |
|
Code Storage |
2 GB |
|
LEDs |
|
| Serial Console Port | Power |
| Data Ports | PoE, Speed/Link/Activity |
|
PoE Configurations |
|
| Serial Console Port | N/A |
| Data Ports | Off/24V/48V* |
|
Networking Interfaces |
|
| Serial Console Port | (1) RJ45 Serial Port |
| Data Ports | (2) 10/100/1000 Ethernet Router Ports (3) 10/100/1000 Ethernet Router/Switch Ports |
|
Wall-Mount |
Yes |
|
Operating Temperature |
-30 to 50° C (-22 to 122° F) |
|
Operating Humidity |
10 to 90% Noncondensing |
|
Certifications |
CE, FCC, IC |
* 48V only available when using the included 48VDC Power Adapter.
| PoE with 48VDC Power Adapter | |
| PoE Out Voltage Range | 22-24VDC / 45-48VDC |
|---|---|
| Max. PoE Wattage Per Data Port | 12W (24V), 24W (48V) |
| Max. PoE Wattage Combined for All 5 Data Ports | 50W |
| PoE Method | Passive |
