UBNT RocketDish RD-5G34 High Power Dual Pol Parabolic Antenna 4.9-5GHz 34dBi
UBNT RocketDish RD-5G34 4.9-5GHz 34dBi high-power Dual-Pol Parabolic Antenna
The Ubiquiti Networks RD-5G34 is a RocketDish operating between 4.9 and 5GHz with a gain of 34dBi. This parabolic antenna is designed for use with the Rocket M5.

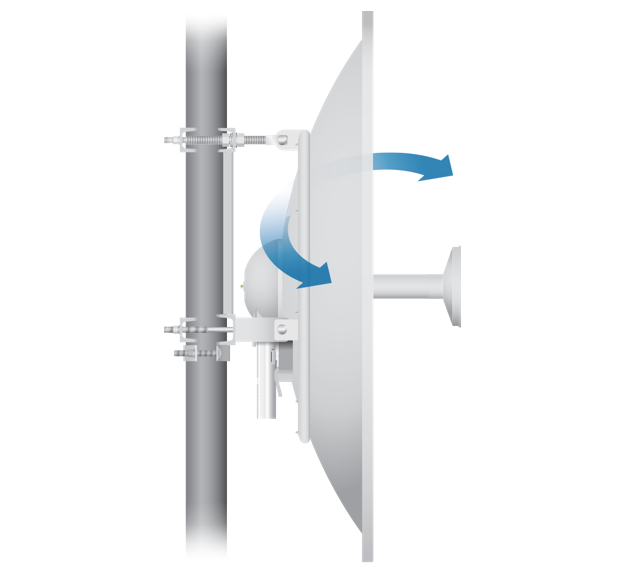

The Ubiquiti RocketDish antenna is designed to work seamlessly with the Ubiquiti Rocket M5 or MikroTik UBTik™ for instant long-range powerful PtP links. No special tools are required to mount the Rocket M5 or MikroTik UBTik™ to the RocketDish antenna, you just use the provided bracket to snap it into place.
Specificaties
| RocketDish RD-5G34 | |
|
Dimensions |
1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57") |
|---|---|
|
Weight |
13.5 kg (29.76 lb) |
|
Frequency |
5.1 - 5.9 GHz |
|
Gain |
34 dBi |
|
HPOL Beamwidth |
3° (3 dB) |
|
VPOL Beamwidth |
3° (3 dB) |
|
Front-to-Back Ratio |
-42 dB |
|
Max. VSWR |
1.7:1 |
|
Wind Survivability |
200 km/h (125 mph) |
|
Wind Loading |
1,779 N @ 200 km/h (400 lbf @ 125 mph) |
|
Polarization |
Dual Linear |
|
Cross-Pol Isolation |
35 dB Min. |
|
Mounting |
Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included |
