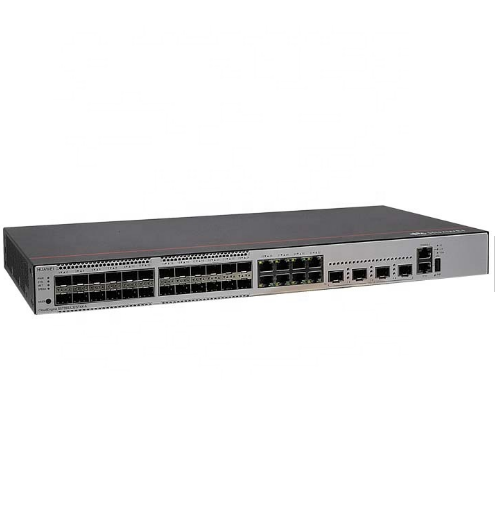

FCC Gigabit Optical Ethernet Switch 65W S5735S-L32ST4X-A HuaWei
S5735S-L32ST4X-A HuaWei 24-optical 8-power 40 gigabit optical Ethernet switch replaces S5720S-28X-LI-24S-AC
Software companionship
|
device family |
device model |
imprint |
|---|---|---|
| S5735S-L | S5735S-L32ST4X-A |
V200R019C00 AND LATER VERSIONS ARE SUPPORTED. illustrate:
V200R021C01 VERSION IS NOT SUPPORTED. |

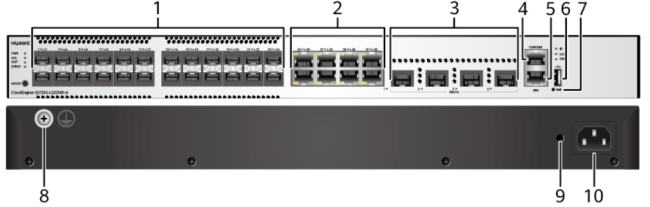

S5735S-L32ST4X-A appearance
| 1 |
24 X 100/1000BASE-X ETHERNET OPTICAL INTERFACES supported modules:
|
2 | 8 X 10/100/1000BASE-T ETHERNET ELECTRICAL INTERFACES |
| 3 |
4 X 10GE SFP+ ETHERNET OPTICAL INTERFACES supported modules and cables:
|
4 | 1 Console interface |
| 5 | 1 ETH MANAGEMENT INTERFACE | 6 | 1 X USB PORT |
| 7 |
1 X PNP BUTTON notice:
long press (6s or more): factory reset and reset the device. short press: reset the device. resetting the device will cause business interruption, so use this button with caution. |
8 |
grounding screws illustrate:
use the grounding cable together.
|
| 9 |
ac terminal anti-tripping jack illustrate:
the jack reserved for installation ac terminal anti-tripping, ac terminal anti-tripping does not ship with the device.
|
10 |
ac outlet illustrate:
use an ac power cable. |
Interface description
100/1000BASE-X ETHERNET OPTICAL INTERFACE
|
attribute |
description |
|---|---|
| connector type | LC/PC |
| optical interface properties | determined by the selected optical module |
| complies with standards | IEEE802.3z |
| working mode | 100/1000Mbit/s adaptive |
10/100/1000BASE-T ETHERNET ELECTRICAL INTERFACE
|
attribute |
description |
|---|---|
| connector type | RJ45 |
| complies with standards | IEEE802.3,IEEE802.3u,IEEE802.3ab |
| working mode | 10/100/1000Mbit/s adaptive |
| maximum effective distance | 100m |
10GE SFP+ ETHERNET OPTICAL INTERFACE
|
attribute |
description |
|---|---|
| connector type | LC/PC |
| optical interface properties | determined by the selected optical module |
| complies with standards | IEEE802.3ae |
| working mode | 10GE/GE ADAPTIVE |
Console interface
|
attribute |
description |
|---|---|
| connector type | RJ45 |
| complies with standards | RS-232 |
| working mode | Duplex UART (Universal Asynchronous Receiver/Transmitter) |
| baud rate |
9600bit/s,19200bit/s,38400bit/s,57600bit/s,115200bit/s the default is 9600bit/s |
ETH MANAGEMENT INTERFACE
|
attribute |
description |
|---|---|
| connector type | RJ45 |
| complies with standards | IEEE802.3 |
| working mode | 10/100Mbit/s adaptive |
| maximum effective distance | 100m |
USB PORT
DUE TO THE DIFFERENCE IN THE COMPATIBILITY AND DRIVE OF THE U DISK MODEL OF DIFFERENT MANUFACTURERS, IF THE U DISK CANNOT BE USED, PLEASE TRY TO REPLACE THE U DISK OF THE MAINSTREAM MANUFACTURER, THE SWITCH SUPPORTS A U DISK WITH A CAPACITY OF NO MORE THAN 128GB.
Specifications
|
specification |
parameter |
|---|---|
| MEMORY (RAM) | 1GB |
| Flash | The physical space is 512MB, and the actual free space can be viewed using the display version command |
| MTBF (YEARS) | 85.87 |
| MTTR AVERAGE REPAIR TIME (HOURS) | 2 |
| usability | greater than 0.99999 |
| service port lightning protection specifications | Common mode ±7kV (maximum support ± 10kV, the device is not damaged) |
| lightning protection specifications of the power port | The differential mode ± 6kV and the common mode ± 6kV |
| dimensions (width× depth× height) |
|
| weight (including packaging materials) | 4.31kg |
| stacking ports | ANY 10/100/1000BASE-T ETHERNET INTERFACE, 100/1000BASE-X ETHERNET OPTICAL INTERFACE, OR 10GE SFP+ ETHERNET OPTICAL INTERFACE (V200R019C10 VERSION AND LATER SUPPORTED) |
| RTC | not supported |
| RPS | not supported |
| PoE | not supported |
| rated voltage range |
|
| maximum voltage range |
|
| maximum power consumption (100% flow, full fan speed) | 65W |
|
typical power consumption (30% flow)
|
360 |
| operating temperature range |
-5°C~+50°C (0m~1800m altitude)
illustrate:
1800m ~ 5000m, the maximum temperature specification is reduced by 1 °C for every 220m increase in altitude. THE DEVICE DOES NOT SUPPORT BOOTING WHEN THE AMBIENT TEMPERATURE IS BELOW 0°C. |
| short-term operating temperature range |
-5°C~+55°C (0m~1800m altitude) illustrate:
1800m ~ 5000m, the maximum temperature specification is reduced by 1 °C for every 220m increase in altitude. the device supports short-term operation in cases where the normal operating temperature range is exceeded, subject to the following conditions:
The device does not support booting when the ambient temperature is below 0°C. The maximum distance of the optical module used in short-term operation should not exceed 10km. |
| storage temperature range | -40°C～+70°C |
| AMBIENT NOISE (27°C, ACOUSTIC POWER) | Less than 53.3dB(A) |
| relative humidity range | 5% RH TO 95% RH, NON-CONDENSING |
| operating altitude | 0m～5000m |
| product certification |
|
| part number | 98010930 |
