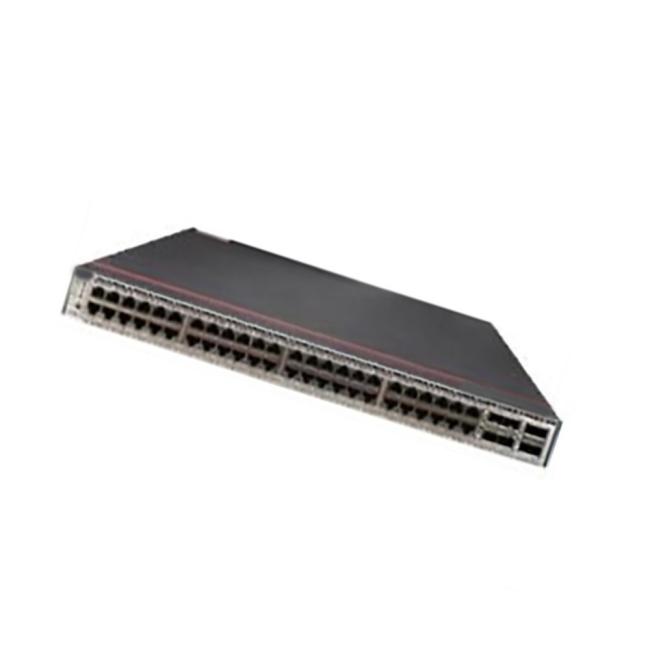

HuaWei S5732-H48UM2CC Fiber Optic Switch 4x25GE 2x40GE 2x100GE Three Layer Core

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: 3-5days

Brand: HuaWei

Product Description

S5732-H48UM2CC HuaWei 480 Gigabit electricity 4 25G optical + 2 40G optical POE + multi-rate three-layer core switch

Descriptions

CloudEngine S5732-H series of next-generation multi-rate Ethernet switches provide 24-port, 48-port and 24-port (optical) + 24-port (electrical) mixed access models, with 4 25GE and 2 40GE uplinks, or 2 100GE

Item	Description
Memory (RAM)	4 GB
Flash	2 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	32.38 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)
Weight (including package)	8.4 kg (18.52 lb)
Stack ports	Any Ethernet electrical port (10GE) or optical port (10GE/25GE/40GE/100GE)
RTC	Supported
RPS	Not supported
PoE	Supported
Rated voltage range	AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC
Maximum voltage range	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC
Maximum power consumption (100% throughput, full speed of fans)	Not providing the PoE function: 347 W (without card) 100% PoE loads: 2043 W (PoE: 1571 W, without card)
Typical power consumption (30% of traffic load, tested according to ATIS standard)	215 W (without card)

Specifications

Product Model	S5732-H24S6Q	S5732-H24UM2CC	S5732-H48S6Q	S5732-H48UM2CC
Switching Capacity	600 Gbit/s/2.4 Tbit/s	1.28 Tbit/s/2.4 Tbit/s	648 Gbit/s/2.4 Tbit/s	1.76 Tbit/s/2.4 Tbit/s
Forwarding Performance	450 mpps	490 mpps	486 mpps	490 mpps
Fixed Ports	20 x GE SFP ports, 4 x 10 GE SFP+ ports, 6 x 40 GE QSFP+ ports	24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 25 GE SFP28 + 2 x 40 GE QSFP+ or 2 x 100 GE QSFP28	44 x GE SFP ports, 4 x 10 GE SFP+ ports, 6 x 40 GE QSFP+ ports	48 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 25 GE SFP28 + 2 x 40 GE QSFP+ or 2 x 100 GE QSFP28
Wireless Services	Management of up to 1024 APs AP access control, AP domain management, and AP configuration template management Radio channel management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis
iPCA	Functions as the parent node to virtualize downstream switches and APs vertically as one device for simpler management Supports a two-layer client architecture Supports third-party devices between SVF parent and clients
VXLAN	VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol
Security	Encrypted Communication Analytics (ECA) Threat trap technology Network-wide security collaboration
Interoperability	VBST (compatible with PVST, PVST+, and RPVST) LNP (similar to DTP) VCMP (similar to VTP)
