Heat Resistant 8kg/Cm2 Thermally Conductive Silicone Interface Pad

Price Negotiable

Price: Negotiation

MOQ: Negotiation

Delivery Time: 3~7Days

Product Description

2.5W/M.K Heat Resistant Thermal Conductive Silicone Pad Material China

Product Description

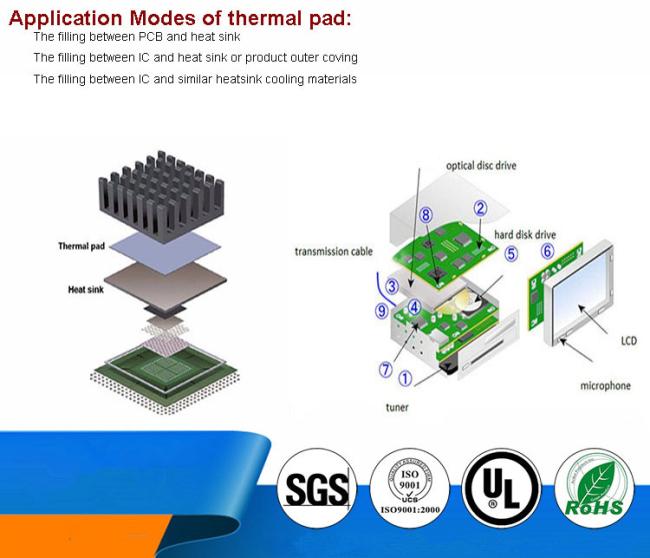

Thermal interface silicone material is high-performance,thermal conductive gap filling materials, mainly for the transmission interface between the electronic equipment,and heat sink or product outer coving.

With nice stickiness,flexibility, good compression performance and excellent heat conductivity designed for it,it makes the products can discharge gas from the electronic original and heat sink, to achieve fully conforming and obviously cooling effect.

Physical Properties

Test item

Test method

Unit

Test Value

Color

Visual

Grey/Black/Blue/Pink

Thickness

ASTM D374

0.5MM

Specific Gravity

STM D792

g/cm3

2.3±0.1

Hardness

ASTM D2240

Shore C

Tensile Strength

ASTM D412

kg/cm2

8-55

ASTM D412

5.88*10 9

Continuous Use Temp

EN344

℃

-40 to +260

Volume Resistivity

ASTM D257

Ω-CM

1.0*1011

Breakdown Voltage

ASTM D149

KV/mm

Flame Rating

UL-94

***

V-0

Conductivity

ASTM D5470

w/m-k

2.5W/M.K

Product Details

Packaging & Shipping

FAQ

Q1: What's the thermal conductivity test method given on the data sheet ?

A1: All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.

Q2: How to find a right thermal conductivity for my
application ?

A2: It depends on the watts of power source , ability of heat dissipation .

Q3: Do you accept custom orders ?

A3:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q4: Do you offer free samples ?

A4: Yes, we are willing to offer free sample but pls kindly note that your side pay for freight .

Q5: How to ship the orders ?

A5: We will help to arrange transportation for you . If you want to use your own courier account pls
kindly tell us before shipping out.

Q6: What's the leading time ?

A6: Sample order costs 1~3 workdays and 3~7 workdays for mass production.
