Diesel Spare Parts Tie Rod End RH Japanese Isuzu FVR Truck Steering Parts 8-98096-753-0

Diesel Spare Parts Tie Rod End RH Japanese Isuzu FVR Truck Steering Parts 8-98096-753-0

1. Product Description.

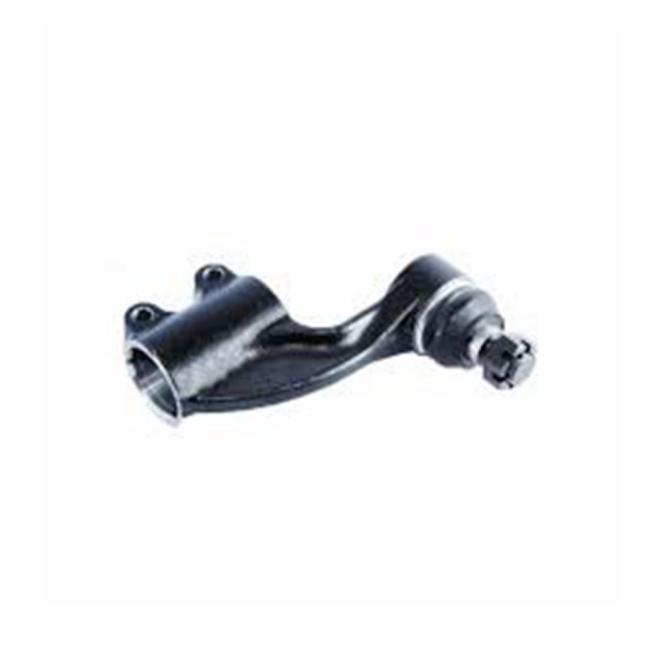

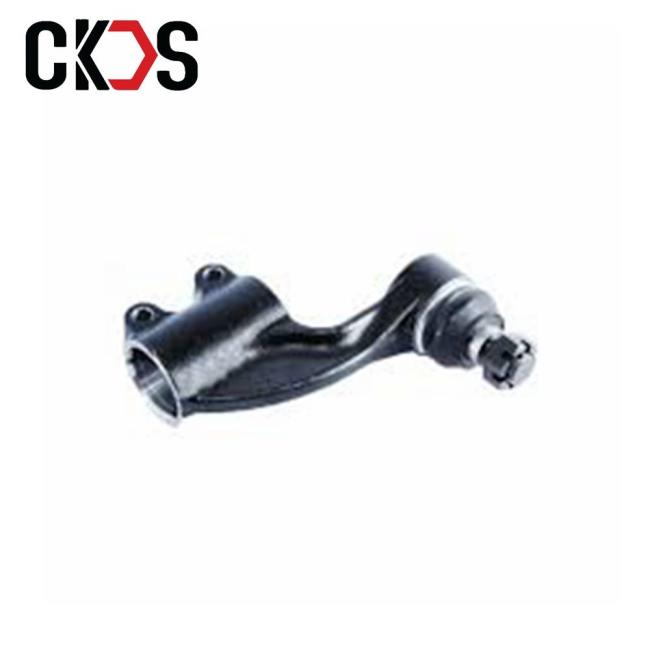

2. Detailed Product Pictures

Functions of Tie-Rod End

Transfers steering force from steering wheel to running wheel and at the same time absorbs road bumps and shocks as well as vibration in order to maintain handling stability. Running wheel side of tie-rod end is constructed with ball joint to respond to road bumps (vertical shocks) and to wheel turns (horizontal movement). The other end has a thread for connecting rod or rack end. By turning the connecting rod or rack end toe-in is adjusted as one of wheel alignments.

3.Product Advantages

- Best for Parts Replacement

- 100% Same Original Parts Finishing

- Lower Failure Rate

Construction

Running wheel side consists of ball joint and the other end consists of threaded shaft.
By vehicle design the thread may be male of female to connect the next tie-rod end.
Ball joint section contains ball stud. Plastic ball seat is inserted between ball stud and housing. Special synthetic grease is added to prevent friction. A plug or cap is inserted and then housing is caulked to prevent leakage.
The other side of plug is filled with mud water prevention grease inside dust cover to prevent leakage.
Tie-rod end with plastic ball seat does not require grease up after production.
Ball stud has tapering shaft and male thread to mount and fasten on wheel section.

4. FAQs

Q: If I am not satisfied with the products, can I returns goods?

A:Yes, we offer exchange and repair service under warranty. Please contact us before you return.

Q: When we will ship out your order?

A: We will ship out the products in 24 hours after receiving your payment if the product is in stock.

Q: What is your service process?

A:Please use the contact form down below to send us inquiry. We will get back to you in the next 8 hours and confirm the parts you need and quote you prices.
