50kg 100kg 150kg 200kg Steel Iron Cast Iron Copper Bronze Induction Melting Furnace Industrial Furnaces

Price Negotiable
Price: 1700$-1900$ / set
MOQ: 1 set
Delivery Time: One month
Brand: IRIS
Product Description

Portable Induction Heating Machine Magnetic Induction Heater Medium Frequency Induction Melting Furnace

Product Description

The furnace and induction heat treatment is mainly used in smelting or melting all kinds of metal. That include iron, steel, aluminum, copper, brass, bronze, silver, gold, etc. It can also be used in the heating treatment of metal. Our electric induction metal melting furnace can be safely applied in all kinds of workplaces and even at home. You can use them at your house, in the exhibition room, in the laboratory, in your factory workshop or in your store.



Main Features
1. High efficiency, you just need a few minutes to melt a small batch of metal.

2. Energy-savinig, high stability, safe.

3. 24 hours continuous work ability.
4. All-solid-state IGBT frequency conversion and function adjustment, automatic frequency conversion tracking.
5. Automatic protection against all sorts of functional deficiency to ensure equipment reliability.
6. Manually and automatically adjust to improve the heating quality of the workpiece.

7. Customizable capacity to meet your production needs.

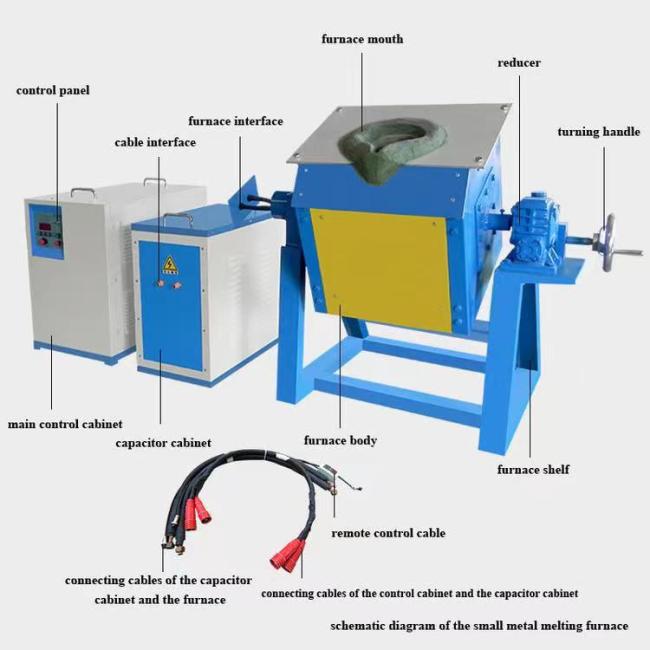

_20220412113730

Besides high functionality and high efficiency, our furnace from induction furnace crucible manufacturer can also be easily operated. The machines can pair with all sorts of crucible to melt different metal, from clay graphite crucible, magnesium oxide crucible, to silicon carbide crucible.

02



Product Parameters

The sizes of our products are customizable, the table below contains the default versions, please contact us for adjustments. We can also provide cooling device, as our clients demands.

Type MAX Input Power Frequency Input Electric Current Output Voltage Input Voltage Cooling Water Requirement Load Duration Crucible Diameter Iron, Steel, Aluminum Copper, Silver, Gold
IRIS-MF15 15KW 1-20KHZ 5-25A

70-520

V

3 phase 380V, 50 or 60HZ ≥ 0.2MPA, ≥5L/min 100% O.D85*165mm 3KG 10KG
IRIS-MF25 25KW 5-35A O.D118*180mm 5KG 20KG
IRIS-MF35 35KW 5-55A O.D130*225mm 10KG 30KG
IRIS-MF45 45KW 5-70A O.D150*300mm 18KG 50KG
IRIS-MF70 70KW 105A O.D175*325mm 25KG 100KG
IRIS-MF90 90KW 135A O.D195*390mm 40KG 120KG
IRIS-MF110 110KW 170A O.D210*400mm 50KG 150KG
IRIS-MF160 160KW 240A O.D265*465mm 100KG 250KG



Certifications

,CE _00.pngHTB1eCKkLpXXXXc1XFXXq6xXFXXX6

Company Information

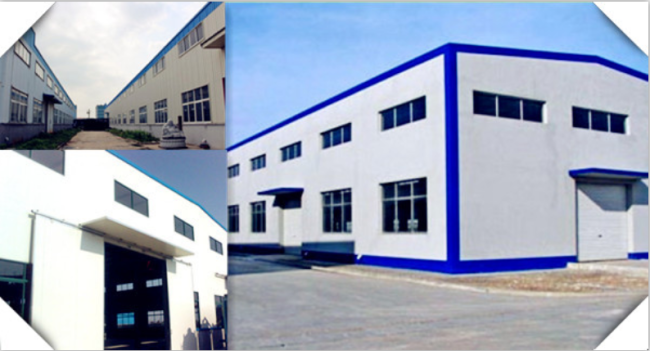

Zhengzhou IRIS Industrial Technology Co., Ltd. is located in the High-Tech Industrial Development Zone of Zhengzhou City, Henan Province. As a professional equipment manufacturer integrating R&D, design, production and manufacturing, the company specializes in heat treatment, melting and supporting production line equipment. Its core products include forging furnaces, nitriding furnaces, vacuum heat treatment furnaces, bogie hearth furnaces, quenching machines, melting furnaces, etc.

1






Packaging & Shipping

We assure you convenient and reliable freight services. Our high quality products will be sent to you as quickly as a week by air, or a month by sea.

farff

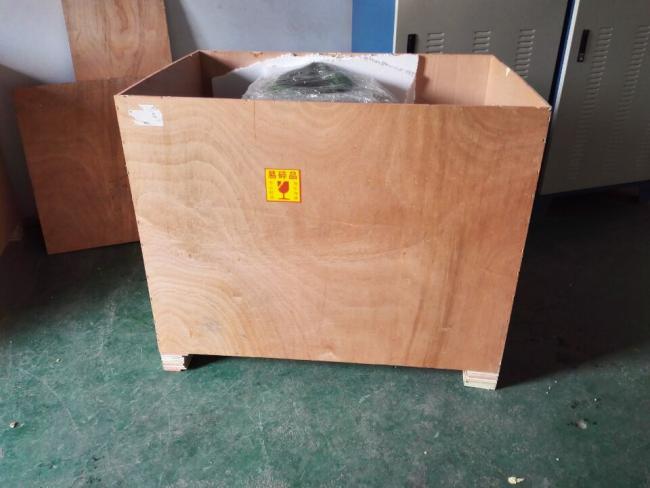

We will run a series strict tests before sendinig out our goods to you, and will pack them in the standard paper or wooden crates.

42

QQ20160712145941



Our Services

With more than 27 years experience in this industry, Zhengzhou IRIS is capable of providing you with excellent and worldwide service.



client

We dedicate to providing the best service to our clients. Your comments and supports are the best inspiration to us.

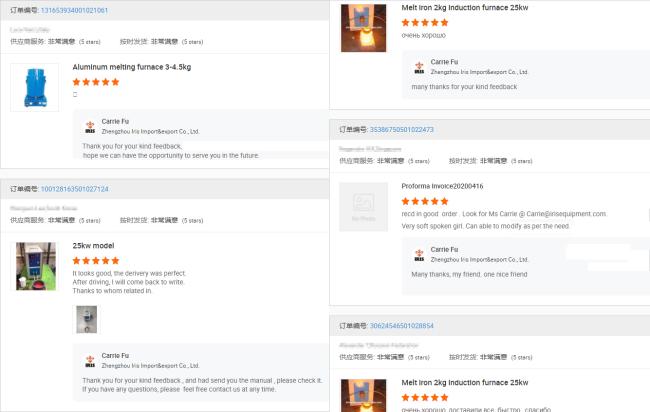

Feedback



FAQ

1. Which countries your products are exported to?

Our products are sold all over the world and with related certifications.



2. Is your goods has ISO9001 or CE certificate ?

Yes, all our goods has ISO and CE certificates. All machines are high quality goods.



3. Which export port do you use?

Commonly we use Qingdao port. It can also be appointed as you like.



4. How to use your machines?

We have guide instructions in English, and we will teach you till you manage it well.



5. How about the warranty?

All our products have one year quality warranty. During the warranty time, the spare parts replacement is free. And we provide life long time technical support, spare parts and other assistance.
