A plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. This has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids are spread out over the plates.
We Support customers custom Product with self brand logo
Our Advantages:
1.we have more than 500 kinds corrugated plates and Plate gaskets,Offer the efficiency solutions according to your different complex work condition.can help customers save much.
2.Enough plate and gaskets materials for your choose,high Efficiency and superior quality.
3.Factory fast delivery once get your deposit payment.Help customers save more times.
4.Superior Quality in PHE manufacture feilds,compact plate heat exchanger
5.Each machine will be tested before Packing
About Our Company:
DGXT PHE is headquartered in Local Place. DGXT PHE is dedicated to providing its customers with Reliability, Organization, Safety, and Satisfaction. DGXT PHE understands how important time and savings are to each customer. DGXTPHE will strive to provide each customer with not only a product, but a solution. Let DGXTPHE be the Heat Exchanger Service company you can count on. If you are looking for superior results in a Heat Exchanger Company, DGXTPHE is ready to meet the challenge!
Product material:
1.Frame material: Q235B carbon steel painted ,carbon inner with Pure stain steel out surface,Pure stain steel
2.Port Material : stud bolts with lining,Epdm sleeve,OEM
3.Plate material : stainless steel AISI304/316/Ti /C276/Hastelloy alloy
4.Gasket material : EPDM,NBR,FPM,FKM,Viton etc
5.Plate Thickness: 0.5/0.6mm/others customized
Gaskets Material and avaiable temperature.
| Chemical name | ASTM D-1418-79 | Temperature °C | Temperature °F |
|---|---|---|---|
| BUTADIENE - ACRILONITRILE | NBR STD FOOD | - 20 + 120 | -4 + 248 |
| BUTADIENE - ACRILONITRILE | NBR HT FOOD | - 20 + 140 | -4 + 284 |
| BUTADIENE - ACRILONITRILE | NBR HT IND | - 20 + 140 | -4 + 284 |
| BUTADIENE - ACRILONITRILE - IDROGENATA | H-NBR | - 40 + 150 | -40 + 302 |
| CLOROPRENE | CR | - 40 + 100 | -40 + 212 |
| ISOBUTILENE - ISOPRENE | IIR | - 40 + 110 | -40 + 230 |
| ETILENE - PROPILENE - DIENE | EPDM STD | - 40 + 120 | -40 + 248 |
| ETILENE - PROPILENE - DIENE | EPDM STD FOOD | - 40 + 120 | -40 + 248 |
| ETILENE - PROPILENE - DIENE | EPDM HT FOOD | - 40 + 150 | -40 + 302 |
| FLUORURATA | FKM "A" STD | - 15 + 220 | -5 + 428 |
| FLUORURATA | FKM "A" FOOD | - 15 + 220 | -5 + 428 |
| FLUORURATA | FKM "GF" | - 8 + 200 | -17,6 + 392 |
| FLUORURATA | FKM "GLT" | - 30 + 200 | -22 + 392 |

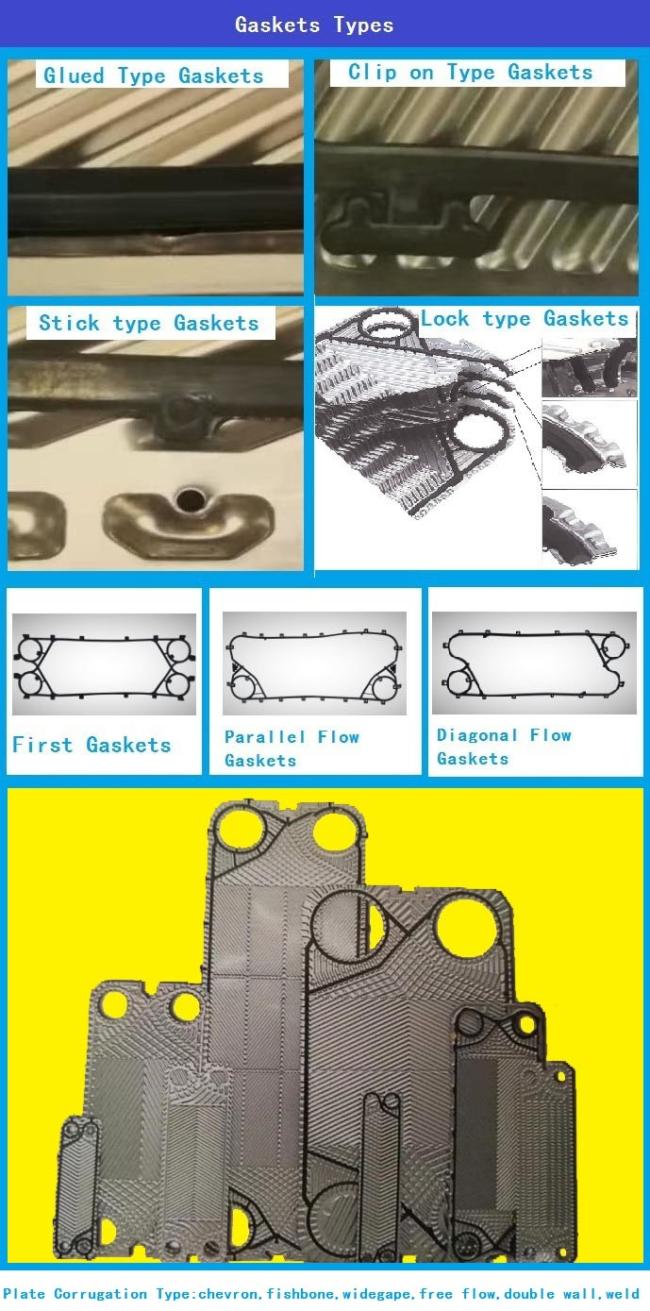

Gaskets Types have many types:Glued on type gaskets,Clip on Type gaskets,
Stick Type Gaskets,Lock type Gaskets.
Plate major Types:Chevron, fishbone,widegapes,free flow type plates
The plate heat exchanger can have single and multipass ,most are single pass,can devided into parallel and cross flow plate heat exchanger.
Plate Heat exchanger Material Warm Tips:
| Plate material | Applicable fluids |
| Stainless steel(SU304.316 ect) | Clean water, river water, edible oil, mineral oil |
| Stainless steel & Ti, Ti-Pd | Sea water, salty water,salt compounds |
| 20Cr, 18Ni,SMO | Dilute sulfuric acid,Water solution of salt matter, Inorganic solution |
| Nickel | High temperature and high concentration of caustic soda |
| Hastelloy | Concentrated sulfuric acid,Hydrochloric acid, Phosphoric acid |
| Sealing material: | adapt temperature | Suitable for fluid |
| NBR | -15~+120ºC | Water, sea water, cooking oil, salt water |
| HNBR | -15~+140ºC | High temperature mineral oil, high temperature water |
| EPDM | -25~+170ºC | Hot water, water vapor, acid, alkali |
| Viton | -5~+130ºC | Acid, alkali, fluid |
