Customized Stainless steel SUS304,316L Titanium Gasket Plate Heat Exchanger
Price:
10000USD
MOQ:
1
Delivery Time:
8-10 days
Brand:
DGXT
Product Description
Titanium Plate Heat Exchanger, Heat Exchanger, Plate Heat Exchanger Maintaince, Gasket Plate Heat Exchanger
A plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. This has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids spread out over the plates. This facilitates the transfer of heat, and greatly increases the speed of the temperature change. Plate heat exchangers are now common and very small brazed versions are used in the hot-water sections of millions of combination boilers. it is suitable for all industry, such as chemical engineering,chemical fertilizer,medicine,metallurgy,machinery,mine,printing and dyeing and so on.
| plate material | Stainless steel(SUS304,316L etc ),Titanium and palladium |

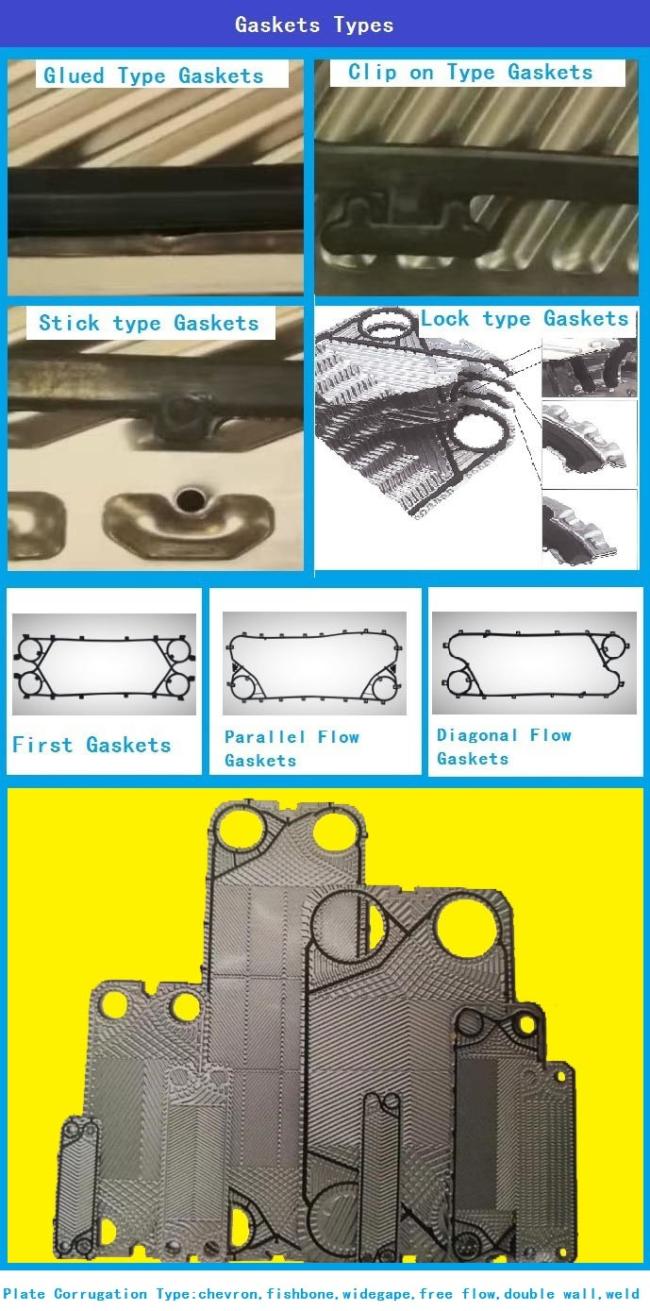

| gasket material | NBR:(applicable temperature -15-+120ºC) HNBR: (applicable temperature -15-+140ºC) EPDM: (applicable temperature -25-+150ºC) HEPDM: (applicable temperature -25-+170ºC) Viton/FPM: (applicable temperature -5-+180ºC) NEOPREKE: (applicable temperature -5-+130ºC) VNQ: (applicable temperature -65-+250ºC) |
| Thickness of plate | 0.5mm/0.6mm |
Application
Food industry
Milk pasteurization, Milk and beverage pasteurization, Wine tempering, Bottled water treatment, CIP (Cleaning-in-Place) heating, Reverse osmosis water.
Marine application
Central cooling of the main or auxiliary engines or turbines, Lubrication oil cooling, Recooling of circulated water for cooling cylinders, pistons, injection nozzles, Cooling of Baoder oil, compressor oil and other lubricants, Preheating of lubrication oil and heavy fuel oil, Preheating of seawater for fresh water production, Heat recovery, Heat exchange to air-condition the passengers' cabins and freight spaces
Others
Turbine oil cooler, Chemical industry, district heating, district cooling, swimming pool heating, solar heating,
High quality
Reasonable price
| HRS Berriquand PHE SPECIFICATION | ||||||
| FP SERIES | ||||||
| MODEL | DN | M2/plate | A | B | C | SURFACE |
| mm | M2 | mm | mm | mm | M2 | |
| HRSB-FP04 | 1' | 0.04 | 460 | 160 | 350 | 5 |
| HRSB-FP08 | 1' | 0.08 | 800 | 160 | 680 | 12 |
| HRSB-FP14 | DN50/65 | 0.14 | 850 | 310 | 590 | 28 |
| HRSB-FP20 | DN50/65 | 0.20 | 1010 | 310 | 820 | 40 |
| HRSB-FP10 | DN50 | 0.10 | 750 | 310 | 495 | 20 |
| HRSB-FP16 | DN50 | 0.15 | 950 | 310 | 695 | 30 |
| HRSB-FP22 | DN50 | 0.22 | 1150 | 310 | 895 | 45 |
| HRSB-FP19 | DN80 | 0.20 | 1100 | 440 | 650 | 100 |
| HRSB-FP29 | DN80 | 0.42 | 1715 | 475 | 1210 | 120 |
| HRSB-FP205 | DN100/125 | 0.21 | 1160 | 480 | 720 | 105 |
| HRSB-FP31 | DN100 | 0.30 | 1350 | 480 | 900 | 150 |
| HRSB-FP40 | DN100 | 0.40 | 1600 | 480 | 1150 | 200 |
| HRSB-FP50 | DN100 | 0.50 | 1850 | 480 | 1400 | 250 |
| HRSB-FP41 | DN150 | 0.40 | 1500 | 610 | 940 | 280 |
| HRSB-FP60 | DN150 | 0.60 | 1850 | 610 | 1300 | 420 |
| HRSB-FP80 | DN150 | 0.80 | 2200 | 610 | 1680 | 560 |
| HRSB-FP405 | DN200/250 | 0.41 | 1390 | 760 | 770 | 300 |
| HRSB-FP70 | DN200/250 | 0.68 | 1750 | 760 | 1130 | 455 |
| HRSB-FP100 | DN200/250 | 1.00 | 2100 | 760 | 1500 | 700 |
| HRSB-FP130 | DN200/250 | 1.30 | 2500 | 760 | 1850 | 910 |
| HRSB-FP80 | DN300/350 | 0.80 | 2000 | 990 | 1100 | 585 |
| HRSB-FP120 | DN300/350 | 1.20 | 2350 | 980 | 1500 | 878 |
| HRSB-FP160 | DN300/350 | 1.60 | 2700 | 980 | 1900 | 1120 |
| HRSB-FP190 | DN300 | 1.90 | 3100 | 980 | 2270 | 1330 |
| HRSB-FP200 | DN500 | 2.00 | 2850 | 1370 | 1800 | 1400 |
| HRSB-FP250 | DN500 | 2.50 | 3200 | 1370 | 2200 | 1750 |
| HRSB-FP300 | DN500 | 3.00 | 3560 | 1370 | 2550 | 2100 |
| SF SERIES | ||||||
| MODEL | DN | M2/plate | A | B | C | SURFACE |
| mm | M2 | mm | mm | mm | M2 | |
| HRSB-SF25O | DN | 0.25 | 1300 | 240 | 1200 | 87 |
| HRSB-SF53O | DN80/100 | 0.53 | 1600 | 450 | 1400 | 300 |
| HRSB-SF101O | DN200 | 1.00 | 1800 | 680 | 1500 | 533 |
| HRSB-SF131O | DN200 | 1.30 | 2200 | 680 | 1900 | 700 |
| HRSB-SF229O | DN200 | 2.29 | 3800 | 800 | 3500 | 1250 |
| HRSB SERIES | ||||||
| MODEL | DN | M2/plate | A | B | C | SURFACE |
| mm | M2 | mm | mm | mm | M2 | |
| HRSB04 | 1' | 0.04 | 450 | 160 | 336 | 5 |
| HRSB08 | 1' | 0.08 | 800 | 160 | 675 | 12 |
| HRSB14 | 2' | 0.14 | 850 | 310 | 590 | 28 |
| HRSB19 | DN80 | 0.2 | 1100 | 440 | 650 | 100 |
| HRSB20 | 2' | 0.2 | 1100 | 310 | 819 | 40 |
| HRSB25 | DN65 | 0.26 | 1215 | 430 | 856 | 55 |
| HRSB31 | DN100 | 0.3 | 1400 | 480 | 894 | 150 |
| HRSB40 | DN100 | 0.4 | 1600 | 480 | 1141 | 200 |
| HRSB50 | DN100 | 0.5 | 1850 | 480 | 1388 | 250 |
| HRSB41 | DN150 | 0.4 | 1500 | 610 | 941 | 280 |
| HRSB60 | DN150 | 0.6 | 1850 | 610 | 1306 | 421 |
| HRSB80 | DN150 | 0.8 | 2200 | 610 | 1671 | 560 |
| HRSB405 | DN200 | 0.43 | 1400 | 760 | 791 | 300 |
| HRSB65 | DN200 | 0.65 | 1700 | 760 | 1091 | 455 |
| HRSB100 | DN200 | 1 | 2100 | 760 | 1489 | 700 |
| HRSB130 | DN200 | 1.3 | 2500 | 760 | 1891 | 910 |
| HRSB80 | DN300 | 0.8 | 1910 | 980 | 1080 | 560 |
| HRSB120 | DN300 | 1.2 | 2310 | 980 | 1490 | 840 |
| HRSB187 | DN300 | 1.87 | 2950 | 980 | 2120 | 1310 |
| HRSB250 | DN300 | 2.5 | 3680 | 980 | 2750 | 1750 |
| HRSB200 | DN300 | 2 | 2860 | 1370 | 1822 | 1400 |
