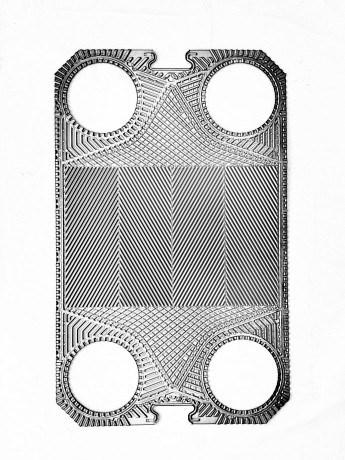

Sondex Equivalent Replacement S43/S43A/S43h/S43 Glue Type Fishbone Plate Heat Exchanger Plate
| Model | Corrugation Angle | Corrugation Depth (mm) | Angle Hole Diameter (mm) | Angle Hole Center Distance (mm) | Plate Size (mm) | Area of Plate (m2) |
| S43H | 56° | 4.5 | φ197 | 791*395 | 1054*660 | 0.43 |
| S43A | 61°121° | 2.6 | φ202 | 791*395 | 1058*657 | 0.43 |
| S43 | 61°121° | 2.6 | φ202 | 791*395 | 1058*656 | 0.43 |
| S43 Glue Type | 60° | 2.6 | φ213 | 791*395 | 1053*657 | 0.43 |
We supply S43/S43A/S43H/S43 glue type flow plate,end plate,transition plate Customized welcome.
Type: Heat Exchanger Plate. Type: S43/S43A/S43H/S43 glue type
uses: heat exchanger, heat transfer mode, wall-to-wall heat exchanger
The role of plate in plate heat exchanger industry, plate heat exchanger plate is a key component of plate heat exchanger, the plate of plate heat exchanger is a special plate used in plate heat exchanger to isolate medium and exchange heat. It is an important part of plate heat exchanger.
Materials : stainless steel SUS304.316, titanium and titanium palladium Ti, Ti-pd, 20Cr, 18Ni, 6Mo 254SMO, alloy C276, copper H68 and so on.
1.How to choose Plate Material?
|
Plate Material |
Suitable Media |
|
Stainless Steel(304/316) |
Pure Water, River Water, Edible Oil, Mineral Oil |
|
Ti, Ti-Pd |
Seawater, Brine, Salt Substance |
|
20Cr,18Ni,6Mo(254MO) |
Dilute Sulfuric Acid, Dilute Salt Substance Aqueous Solution, Inorganic Aqueous Solution |
|
Ni |
High Temperature, High Density Caustic Soda |
|
Hastelloy(C276,D205,B2G) |
Concentrated Sulfuric Acid, Hydrochloric Acid, Phosphoric Acid |
2.Each Plate contains two parts
3.Two functions of plate ripple
4.Two different types of plates
5.Each plate type has two types of plates with different corrugation angles
6.Two plates with different corrugation angles can be combined to form three different heat exchange channels:

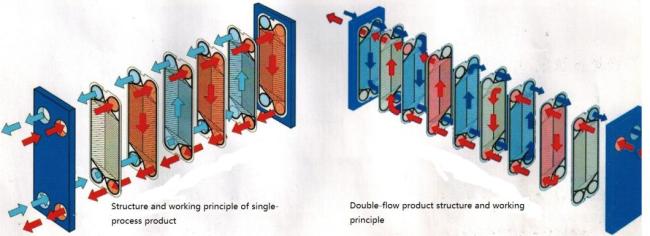

7.Each heat transfer channel can be assembled into a single-flow product structure and a double-flow product structure
8.The advanced shunt structure design, lets the shunt more even
9.Parallel flow plate design, make maintenance more convenient
More Sondex plate type:
| S4A | S16B | S22 | S43A | S81 | S86 | S65 Glue Type |
| S8A | S9A | S37 | S43 | S121 | S110 | S100 Glue Type |
| S7A | S19A | S41 | S65 | S188 | S113G | S130 Glue Type |
| S14A | S31A | S41A | S100 | S81 | S201G | SFD13 |
| S20A | S17 | S42 | S100 | S121 | SF123 | SFD22 |
| S7Glue | S21 | S63 | S47 | S188 | SF160 | SFD23 |
| S20Glue | S21A | S43H | S64 | S62 | S43 Glue Type | SFD35 |
S43/S43A/S43H/S43 glue type Plate Heat Exchanger
