Sondex S4a|S7a|S8a|S14A|S15|S19A|S20A|S21A|S22|S64 Stainless Steel Plate for Power Industry Heat Exchanger
Price:
50-99 Pieces / US $19.5 | 100-199 Pieces / US $18.5 | 200-299 Pieces / US $18 | 300+ Pieces / US $17.6
MOQ:
1
Delivery Time:
8-10 days
Brand:
DGXT
Product Description
Sondex S4A|S7A|S8|S8A|S14A|S15|S19A|S20A|S21A|S22|S64 stainless steel Plate
Full range of brands plate for power industry heat exchanger
Product introduction:
1.Metal material:304/316/Titanium /254 SMO/Alloy C-276/904L oem welcome
2. Gaskets:Nitrile- EPDM- FKM
3.Application: Heat exchanger High effectient heating and Cooler
Heat Exchanger Plate Material Choose reference:
Heat Exchanger Plate gaskets Material Choose reference:
![Sondex S4a|S7a|S8a|S14A|S15|S19A|S20A|S21A|S22|S64 Stainless Steel Plate for Power Industry Heat Exchanger]()
![Sondex S4a|S7a|S8a|S14A|S15|S19A|S20A|S21A|S22|S64 Stainless Steel Plate for Power Industry Heat Exchanger]()
![Sondex S4a|S7a|S8a|S14A|S15|S19A|S20A|S21A|S22|S64 Stainless Steel Plate for Power Industry Heat Exchanger]()
More our products display:
![]()
![]()
![Sondex S4a|S7a|S8a|S14A|S15|S19A|S20A|S21A|S22|S64 Stainless Steel Plate for Power Industry Heat Exchanger]()
![Sondex S4a|S7a|S8a|S14A|S15|S19A|S20A|S21A|S22|S64 Stainless Steel Plate for Power Industry Heat Exchanger]()
![Sondex S4a|S7a|S8a|S14A|S15|S19A|S20A|S21A|S22|S64 Stainless Steel Plate for Power Industry Heat Exchanger]()
| Sondex Plate | S4A S7A S8 S8A S14A S15 S19A S20 S20A S21 S21A S22 S27A S30 S35 S37 S37B S38 S39 S41 S41A S42 S43B S47B S50 S62 S64 S65B S65C S65G S81 S100B S121 S188 SFD13 SF25A etc |
Full range of brands plate for power industry heat exchanger
Gaskets For Sondex Plate Heat Exchanger |
||||||

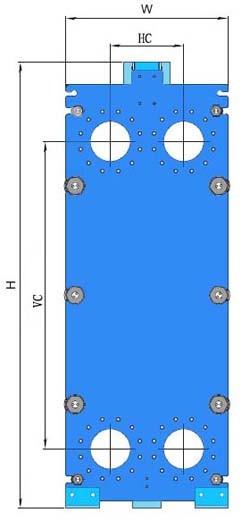

| Model | S4A Hang-om | S15 | S8 Sondersnap | S8A Hang-on | S14A Hang-on | S7A Hang-on |
| HC=mm | 70 | 126 | 70 | 126 | 126 | |
| VC=mm | 381 | 694 | 656 | 694 | 394 | |
| Model | S19A | S20 | S20A Hang-on | S21 Sonderlock | S21A Hand-on | S22 Sonderlock |
| HC=mm | 192 | 126 | 126 | 225 | 225 | 225 |
| VC=mm | 700 | 894 | 894 | 719 | 719 | 719 |
| Model | S121 | S30 | S35 | S37 Sonderlock | S38 Sondersnap | S39 |
| HC=mm | 480 | 202 | 283 | 238 | 202 | |
| VC=mm | 1490 | 950 | 800 | 1441 | 1150 | |
| Model | S41 | S41A | S43 Sonderlock | S47 Sonderlock | S50 | S62 Sonderlock |
| HC=mm | 296 | 296 | 395 | 225 | 202 | 296 |
| VC=mm | 890 | 890 | 791 | 1365 | 1450 | 1292 |
| Model | S64 Sonderlock | S65 | S65 Sonderlock | S81 | S100 Sonderlock | S120 |
| HC=mm | 225 | 395 | 395 | 480 | 395 | 480 |
| VC=mm | 1771 | 1091 | 1091 | 1080 | 1489 | 1490 |
Product introduction:
1.Metal material:304/316/Titanium /254 SMO/Alloy C-276/904L oem welcome
2. Gaskets:Nitrile- EPDM- FKM
3.Application: Heat exchanger High effectient heating and Cooler
Heat Exchanger Plate Material Choose reference:
| Plate matrial | Adapt Liquid |
| Stainless steel(304,316) | Pure water,stem water,Edible oil,mineral oil |
| (Ti,Ti-Pa) | Sea water,Salt water,Salt compounds |
| 20Cr,18Ni,6Mo(2455Mo) | Dilute sulfuric acid, dilute sulfate, organic water solution |
| (Ni) | High Temperature and High Concentration Caustic Sodium |
| HASTELLOY(C276,D25,B2G) | Concentrated sulfuric acid, hydrochloric acid and phosphoric acid |
Heat Exchanger Plate gaskets Material Choose reference:
| Sealing material: | adapt temperature | Suitable for fluid |
| NBR | -15~+120ºC | Water, sea water, cooking oil, salt water |
| HNBR | -15~+140ºC | High temperature mineral oil, high temperature water |
| EPDM | -25~+170ºC | Hot water, water vapor, acid, alkali |
| Viton | -5~+130ºC |
Acid, alkali, fluid |
