Product Description
|
NAME |
PAREMETER |
REMARKS |
|
Overall weight |
5240KG |
without rod |
|
LxWxH |
5761mmx1872mmx2051mm |
Horizontal status of boom |
|
Maximum push pull power |
Level 1-100KN Level 2-40KN |
|
|
Maximum push and pull speed |
Level 1 23.8m/min Level 259.3m/min |
|
|
Maximum output torque |
3029 Nm |
|
|
Maximum rotation speed |
191 Rpm |
|
|
Engine rated power/rotation speed |
74Kw/2200Rpm |
|
|
|
160 Lpm |
|
|
Maximum pressure of mud pump |
7 Mpa |
|
|

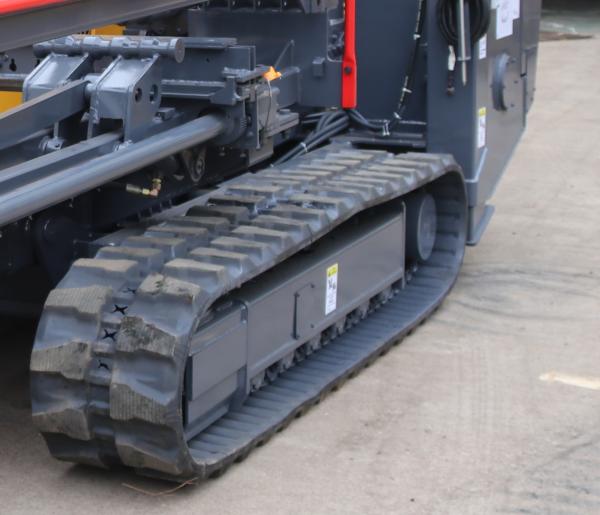

Speed of rubber track |
0-1.7 Kmph |
|
|
Entry angle |
18° |
|
|
Maximum gradient |
20° |
|
|
Maximum diameter of back reaming |
Φ400 |
|
Product performance description
HL510B, Horizontal Directional Drilling is a new dilling machine which developed independently based on well absorbing the domestic, overseas superior technology of the similar product and it unites the domestic market demand. The machine is characteric of novel design, perfect performance, handsome shape, elaborate works, and boats high performance price ratio.
