Four Wheel 150m Portable Water Well Borehole Drilling Rig
Four Wheel 150m Portable Water Well Borehole Drilling Rig
Product Description
SLY510 Borehole Drilling Rig is lightweight, efficient, multi-purpose drilling equipment, whichcan use air, foam or mud rotary for percussive drilling according to different textures. It is widelyused in industrial and agricultural water conservancy projects, such as drilling wells, testing wells orother exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet theengineering basis for reinforcement, loose gravel drilling rock formation connected with a variety ofengineering requirements.
Technical Specification
|
Bore Diameter (mm) |
90-220 |
|
Bore Depth (mm) |
150 |
|
Rock Hardness (F) |
6-20 |
|
Air Pressure (Mpa) |
1.05-3.0 |
|
Air Consumption (m³/min) |
16-30 |
|
Once Promotion (mm) |
2000 |
|
Maximun Height from The Ground (mm) |
320 |
|
Rotation Speed (r/min) |
0-100 |
|
Rotation Torque (NM) |
3900 |
|
Dimension (L*W*H) (mm) |
5425*2250*2470 |
|
Host Power (kW) |
56/87 (Optional) |
|
Weight (kg) |
6000 |
|
Mud Pump (Optional) |
BW450/5 |
|
Pump Speed (L/min) |
172-450 |
|
Pump Pressure (Mpa) |
2.0-5.0 |

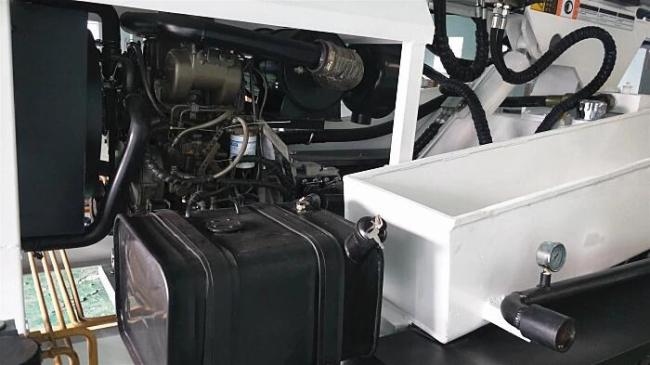

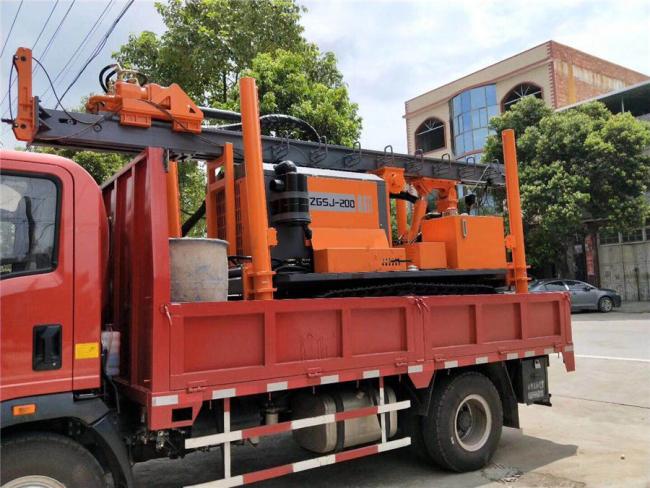

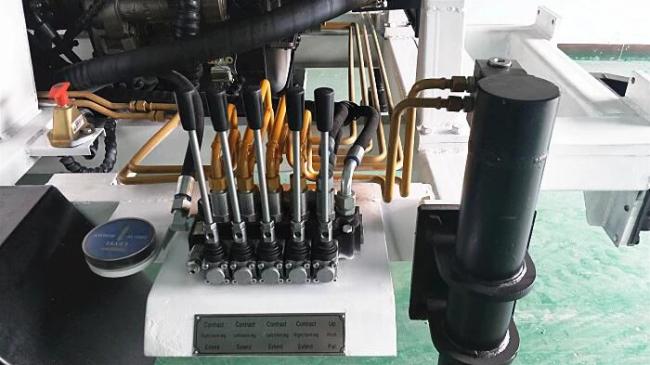

Detailed Images
Product packaging
