Build Construction 25m Rotary Borehole Drilling Machine
Build Construction 25m Rotary Borehole Drilling Machine
Specification
|
Description |
Unit |
Data |
|
|
Max. Drilling Diameter |
mm |
1800 |
|
|
Max. Drilling Depth |
m |
25 |
|
|
Engine |
Model |
/ |
Cummins GBT5.9-C210 |
|
Rated Power |
kW |
154 |
|
|
Rotary Drive |
Max. output torque |
kN .m |
80 |
|
Rotary speed |
r/min |
17-40 |
|
|
Pull-Down Cylinder |
Max.pull-down piston push |
kN |
80 |
|
Max.pull-down piston pull |
kN |
100 |
|
|
Max.pull-down piston stroke |
mm |
2000 |
|
|
Main Winch |
Max.pulling force |
kN |
100 |
|
Max. single-rope speed |
m/min |
70 |
|
|
Diameter of the steel wire rope |
mm |
24 |
|
|
Auxiliary Winch |
Max.pulling force |
kN |
60 |
|
Max. single-rope speed |
m/min |
54 |
|
|
Diameter of the steel wire rope |
mm |
16 |
|
|
Traveling |
Max. traveling speed |
km/h |
2.6 |
|
|
|||
|
Min.ground claerance |
mm |
340 |
|
|
Approach angle |
° |
21 |
|
|
Departure angle |
° |
18 |
|
|
Max.grade ability |
% |
30 |
|
|
Overall Drilling Weight |
t |
26 |
|
|
Dimension |
Transportation condition(L×WH) |
mm |
10100×2600×3500 |

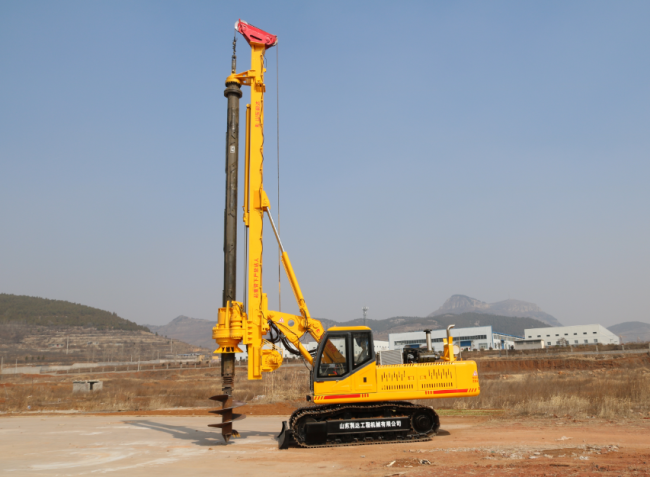

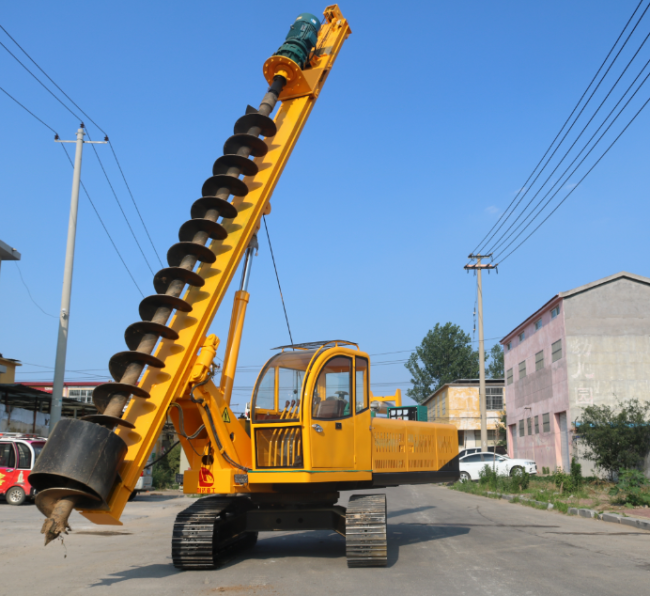

Product Display
