600m Geological Exploration Truck Mounted Drilling Machine
Geological Exploration Truck Mounted Drilling Machine
Main Features
1. Drills up to 600m deep, 75-300mm diameter , trailer mounted.
2. hydraulic system: Hydraulic mast, Hydraulic spindle.
3. BW160/BW250 Mud Pump.high pressure and big flow.
4.Rig is Skid mounted,can move back-and-forth on the base.
3. Drill on soil, sand, gravel, thickhard rocks, marble, Quartz, and any other hard ground, etc.
4. In the accessory list there are alloy bit for soil, diamond bit for rock, PDC bit for small rock.
5. It is a full set of machine with all 600m accessory can be used upon arrival.

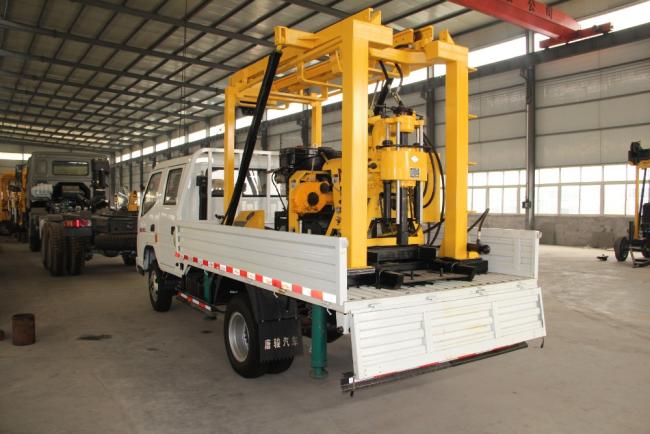

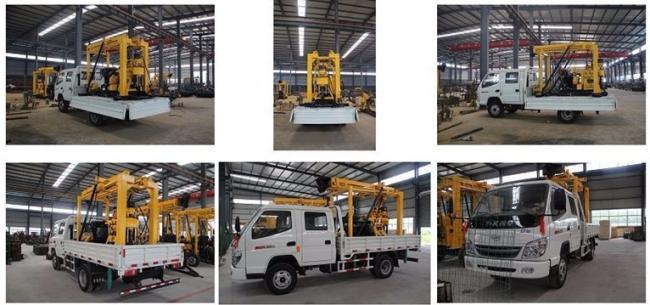

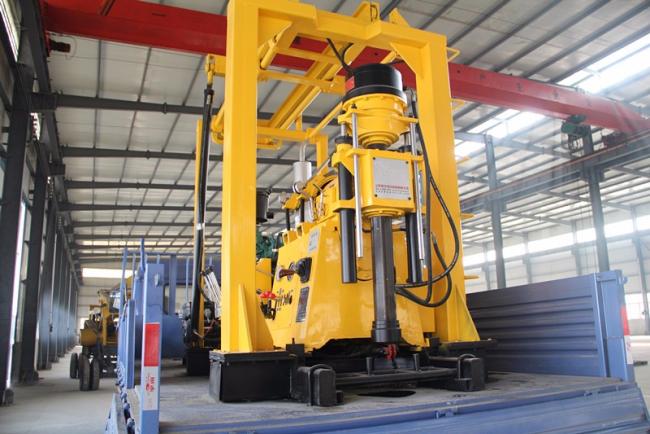

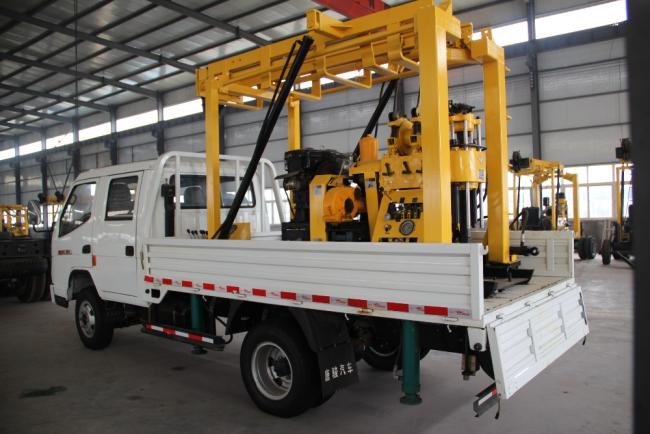

Detailed pictures
Product Application
Drill for Water well, Geological exploration / investigation, Soil sample taking,Soil test, SPT Test, Mining project, etc.
|
Specifications |
|||
|
Drilling depth |
200m |
600m |
|
|
Drilling diameter |
300-75mm
|
300-75mm |
|
|
Drilling angle |
90-75degree |
90-75degree |
|
|
Spinlde |
|||
|
Sindle speed |
64-557r/min |
30-1050r/min |
|
|
Spindle stroke |
450mm |
600mm |
|
|
Winch |
|||
|
Max lifting
|
1600kg |
3000kg |
|
|
Rolling lines |
35m |
|
|
|
Lifting speed |
0.12-0.95m/s |
0.3-1.9m/s |
|
|
Line diameter |
12.5mm |
12.5mm |
|
|
Drill mast height |
6.5m |
6.5m |
|
|
Diesel engine |
14.7kw/2200rmp |
39kw/2400rmp |
|
|
Mud pump |
BW160 |
BW250 |
|
|
Truck type |
4*2 |
4*2 |
|
|
Truck diesel |
70KW |
121KW |
|
