Ceramic Hydraulic System 100MPa Oil Barometric Pressure Sensor
Ceramic hydraulic system barometric oil pressure sensor
High-precision pressure transmitter uses imported diffusion silicon as pressure-sensitive element, With wide temperature range compensation of -10 ~ 70 ℃, it has excellent temperature performance. This series of transmitters use instrument-grade amplifiers with strong anti-interference performance. The products have passed the intrinsically safe explosion-proof certification, which guarantees the use in various environments and climate
This series of products are used in various application scenarios that require high measurement accuracy, good long-term stability, and strong anti-interference performance.
Application
• Equipment automation
• Construction machinery
• Medical equipment
• Farm equipment
• Hydraulic test stand
• Test instrument
• Pneumatic and hydraulic systems
• Energy and water treatment systems
Technical Parameters:
|
Range |
Gauge:-100kPa…-60…-5…~5kPa…100MPa |
|
Differential pressure: -100kPa…-60…-5~5kPa…4MPa |
|
|
Absolute pressure: 0~10kPa…100kPa…2.5MPa |
|
|
Overload pressure |
≤10MPa 200% , >10MPa 150% |
|
Response time |
≤5ms |
|
Accuracy class |
0.5%FS 0.25%FS 0.15%FS |
|
Long-term stability |
Typical:±0.1%FS/year |
|
Zero temperature drift |
Typical:±0.02%FS/℃,Maximum:±0.05%FS/℃ |
|
Sensitivity temperature drift |
Typical:±0.02%FS/℃,Maximum:±0.05%FS/℃ |
|
Supply |
12~28VDC (Standard 24VDC) |
|
Output |

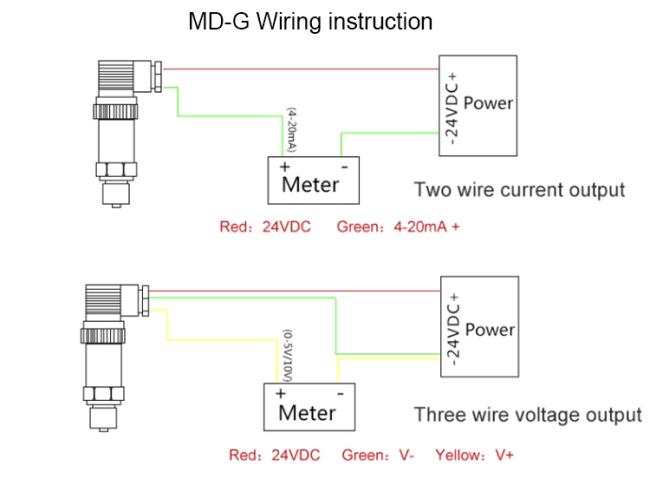

4-20mA / RS485 / 0~5V / 0~10V |
|
Operating temperature |
-40~80℃ |
|
Compensation temperature |
-10~70℃ |
|
Stored temperature |
-40~100℃ |
|
Electrical protection |
Anti-reverse protection, anti-frequency interference design |
|
Protection class |
IP65(DIN) IP67(Straight out) |
|
Measurement Medium |
Gas or liquid incompatible with 316L stainless steel |
|
Pressure connection |
M20*1.5,G1/2,G1/4,NPT1/4 (Other can be customized) |
|
Connector Material |
304SS |
