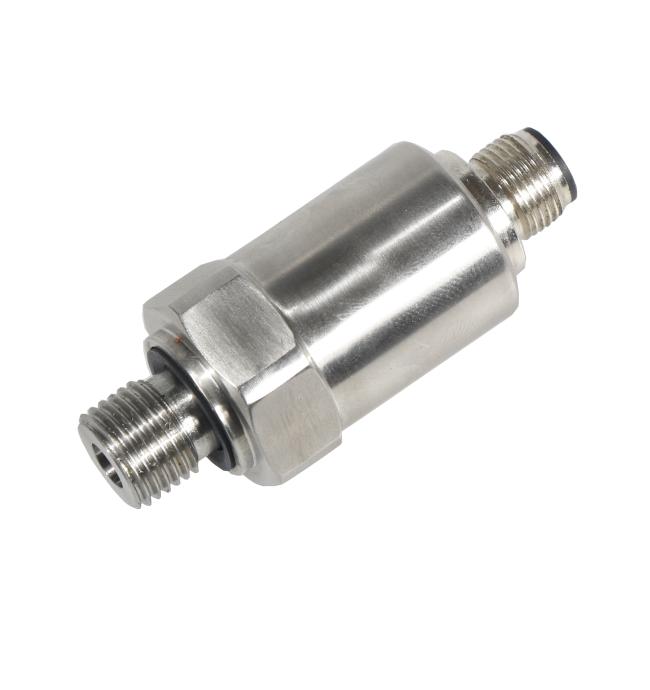

316L Stainless Steel 10V Hydraulic Barometric Pressure Sensor
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
5-10days
Brand:
OEM
Product Description
316L Stainless Steel 10V Hydraulic Barometric Pressure Sensor
Product Description
pressure transmitter use the Germany Ceramic sensors or diffuse silicon oil-filled sensors body as the sensitive element, built-in processing circuit to change sensors millivolt signal to standard output voltage or current signals, can be directly with the computer, control instrument and display instrument, etc. Select the high stability, high reliability of piezoresistive pressure sensor and high-performance dedicated circuit in the transmitter, the overall performance is stable and reliable, long distance signal transmission can be performed. Adopts the integration of the full stainless steel structure, after lots of stainless steel welding to reach the solid-state design, easy installation, with the characteristics of high vibration resistance and impact resistance, can be use in the bad environment for a long time.
Features
316L stainless steel diaphragm Micro amplifier,voltage and current output signal lication Strong anti-interference ,long-term stability Multiple electrical connection are optional ,easy installation Small size,low-cos and OEM is available Wide range,available to Gauge,Absolute and sealed gauge type
| Characteristic of Pressure Sensor | ||||
| 1 | Germany technology Ceramic sensors, 10 years design | |||
| 2 | Ti special integrated processing chip is used in the circuit | |||
| 3 | Automatic temperature compensation -40~80 | |||
| 4 | Superior Long term Stability,low temperature drift, high sensitivity | |||
| 5 | Multiple electrical connection are optional ,easy installation | |||
| 7 | Wide range,available to Gauge,Absolute and sealed gauge type | |||
| 8 | HVAC Systems ·Energy and Water Treatment | |||
| 9 | EMI/RFI Rejection | |||

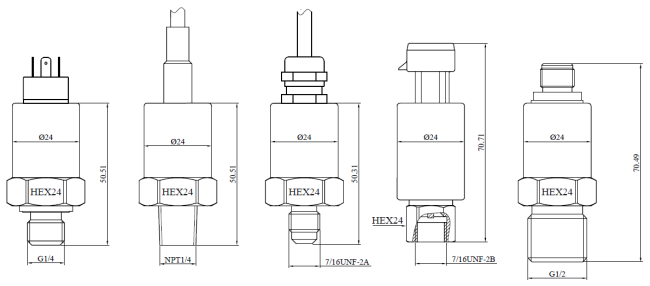

Size Information
Dimension Unit of outline drawing:mm.

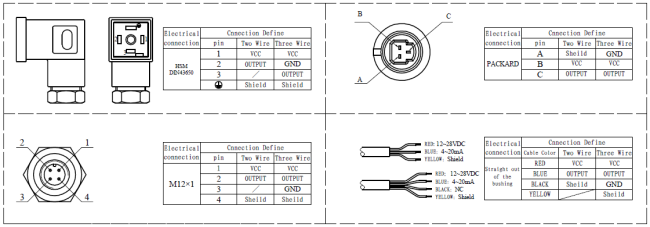

Electrionic Connections
OUTPUT=Signal, VCC=Power Supply, GND=VCC-&S,Sheild=Earth
Manufacture Specification
Ambient Temperature: 25°C (unless specified)
| Parameter | Data | |||||
| Pressure Range | -0.1...0~0.01...100MPa | |||||
| Pressure type | gauge (G), absolute (A), sealed gauge (S) | |||||
| Overpressure | 150%FS | |||||
| Burst pressure | 250%FS | |||||
| Electronic Wire | 2 Wires | 3 Wires | ||||
| Output signal | 4~20mA | 0~5VDC | 1~5VDC | 0~10VDC | 0.5~4.5VDC | 0.5~4.5 V radio metric |
| Power Supply | 12 ~ 30VDC, typical value: 24VDC | 10~30 V DC | 10~30VDC | 12~30VDC | 5 V DC | 5 V DC±5% |
| Accuracy | 0.25%FS(typ.) 0.5%FS(max.) | |||||
| (including: nonlinearity, repeatability, hysteresis, zero drift, full drift) | ||||||
| Long-term stability | ≤0.2%FS/year | |||||
| Working Temp | −25℃~85℃ | |||||
| Storage Temp | −40℃~125℃ | |||||
| Temperature Compensation | -10℃~80℃ (Standard) | |||||
| Temp.coefficient of zero | ±0.1%FS/°C | |||||
| Temp.coefficient of span | ±0.05%FS/°C | |||||
| Insulating resistance | 100MΩ@250VDC | |||||
| Medium compatible | Water, gas and weakly corrosive fluids | |||||
| Short circuit protected | Yes | |||||
| Reverse polarity protection | Yes | |||||
| Electronic connection | Packard 3 Pin Connector; | |||||
| Smaller Hirschman Terminal Box IP65; | ||||||
| Packard 3 Pin Connector with cable length by Customized. | ||||||
| Pressure interface | M20x1.5, 1/8’’NPT male, 1/4’’NPT male/Female, G1/4’’ male/female, 7/16’’-20 UNF male/Female (by Customized) | |||||
| Material of pressure membrane | 316L stainless steel | |||||
| Response time(10%~90%) | ≤10msec(Rises to 90%FS) | |||||
| Vibration Shock | 10g/5~2kHz,axes X/Y/Z/20g half sine 11ms | |||||
| Water Proof | IP65 | |||||
| Certificate approving | CE Certificate available. | |||||
| EMC Standard | EN 61326-1:2013; EN 61326-2-3:2013 EN 61000-6-2:2005; EN61000-6-4:2007+A1 | |||||
| Weight | Net weight is about 0.1KG, Full Packing weight is about 0.2KG (Included 2 Meters Cable) | |||||
