Introduction
waterproof pressure transducer is an isolated oil - filled pressure sensor core with high performance, low cost and small volume. It uses MEMS Silicon chip. Manufacturing of each sensor is a process with strict aging, screening and testing to ensure the excellent quality and high reliability.
This product has high anti-overload capacity and wide temperature range, it is widely used in automobiles, loading machinery, pumps, air conditioning and other occasions where have high requirements on small size and cost-effective.
Feature
Ø Measuring range: -100kPa…0kPa~10kPa…100MPa
Ø Wide temperature compensation: -10℃~+80℃
Ø Imported chip, Laser trimming
Ø SS 316L φ19mm*11.5mm

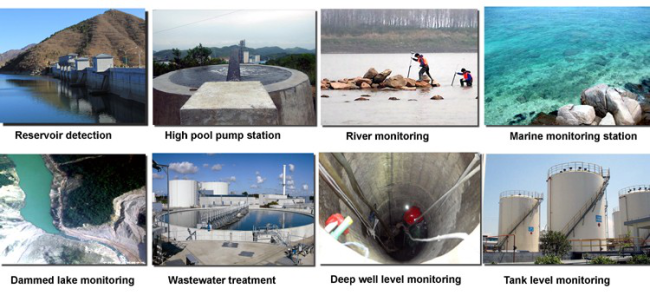

Application
Ø Pressure measurement of automobile engine oil
Ø Engineering machinery, water pumps, equipment
Ø Industrial process control
Ø Urban water supply system

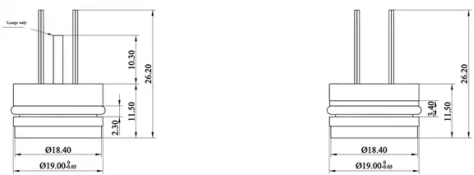

Outline Construction:(Unit: mm)
Specification
|
Construction Condition |
|
|
Diaphragm material |
SS 316L |
|
Housing material |
SS 316L |
|
Pin Wire |
Kovar/100mm silicone rubber wire |
|
Back pressure tube |
SS 316L (gauge and negative pressure only) |
|
Seal ring |
Nitrile rubber |
|
Electrical Condition |
|
|
Power supply |
≤2.0mA DC |
|
Impedance input |
3kΩ~6kΩ |
|
Impedance output |
3kΩ~6kΩ |
|
Response |
(10%~90%):<1ms |
|
Insulation resistance |
100MΩ,100V DC |
|
Overpressure |
2 times FS |
|
Environmental Condition |
|
|
Media applicability |
Fluid which has no corrosion on stainless steel and nitrile rubber |
|
Shock |
No change at 10gRMS,(20~2000)Hz |
|
Impact |
100g,11ms |
|
Position |
Deviate 90° from any direction, zero change≤±0.05%FS |
|
Basic Condition |
|
|
Environment temperature |
(25±1)℃ |
|
Humidity |
(50%±10%)RH |
|
Atmospheric pressure |
(86~106) kPa |
|
Power supply |
(1.5±0.0015)mA DC |
Parameter
|
Item |
Min. |
Typ. |
Max. |
Units |
|
Linearity
|
|
±0.1 |
±0.2 |
%FS,BFSL |
|
Repeatability |
|
±0.05 |
±0.075 |
%FS |
|
Hysteresis |
|
±0.05 |
±0.075 |
%FS |
|
Zero output |
|
|
±2.0 |
mV DC |
|
FS output |
45 |
130 |
|
mV DC |
|
Compensated temp. range |
-10~80 |
℃ |
||
|
Working temp. range |
-40~125 |
℃ |
||
|
Storage temp. range |
-55~150 |
℃ |
||
|
Zero temp. error |
|
±0.75 |
±0.1 |
%FS, @25℃ |
|
Full temp. error |
|
±0.75 |
±0.1 |
%FS, @25℃ |
|
Long term stability error |
|
±0.2 |
|
%FS/year |
|
Note:1. The above performance indicators are tested under the benchmark conditions |
||||
|
2. The temperature range for temperature drift test is the compensation temperature range |
||||
