10VDC Ultra High Pressure 1500MPa Atmospheric Pressure Transducer
10VDC Ultra High Pressure 1500MPa Atmospheric Pressure Transducer
Description
ultra-high pressure transmitter is made of rare metal alloy material, specially processed, integrated design, all stainless steel welded package, laser temperature-regulated temperature compensation, high-performance digital processing circuit, high temperature and low temperature aging Long-term fatigue test, long-term stability, long working life, safe and stable operation in the ultra-high pressure range.
Specification
| Pressure range | 0-150MPa…300MPa…400MPa…600MPa…800 MPa…1000MPa…1200MPa…1500MPa Optional |
| Allow overload | 120%FS |
| Destruction pressure | 200%FS or 1700MPa,take the smaller value |
| Power supply range | pressure sensor 3-15VDC, pressure transmitter 12-36VDC |
| Signal output | pressure sensor 0-20mV, pressure transmitter 4-20mADC two lines, 0-5VDC three lines,0-10VDC three lines. |
| Accuracy | ±0.25%FS,±0.5%FS,±1.0%FS Optional(Including nonlinearity, repeatability, hysteresis) |
| Stability error | ≤±0.5%FS/Year |
| Operation temp | -40~+85ºC /125ºC/300ºC |
| Compensation temperature | -40~+80ºC /120ºC |
| Storage temperature | -40~+85ºC /125ºC |
| Ingress protection | IP65,IP67 |
| Vibration | 5-1000Hz,Amplitude 2mm, X,Y,Z 30 minutes per direction, Output change is less than 0.1%FS |
| Shock | 50g,X,Y,Z 3 direction, 20ms per direction, Output change is less than 0.1%FS |
| Out cable | Hirschmann connector or aerospace connector, Ø 6mm polyethylene cable directly sealed lead |
| Pressure interface | M20x1.5,M16x1.5,9/16-18UNF thread or user specified |
Dimensions in mm

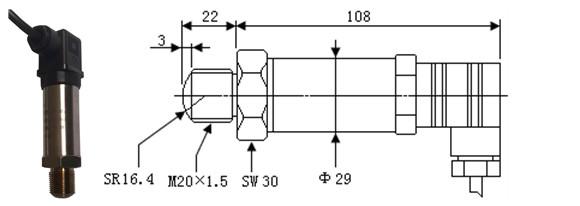

Model 1: The model adopts spherical sealing method; And Electrical
connections with L-connector DIN43650

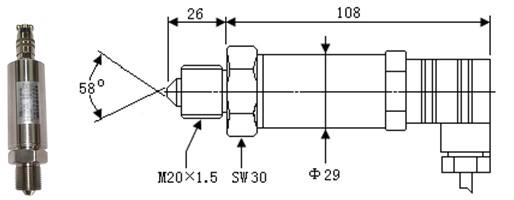

Model 2:The model adopts 58-degree outer cone seal. And Electrical
connections with circular connector M12*1
Model 3: The model adopts M20 × 1.5 external thread, And Electrical
connections with 2m cable connection

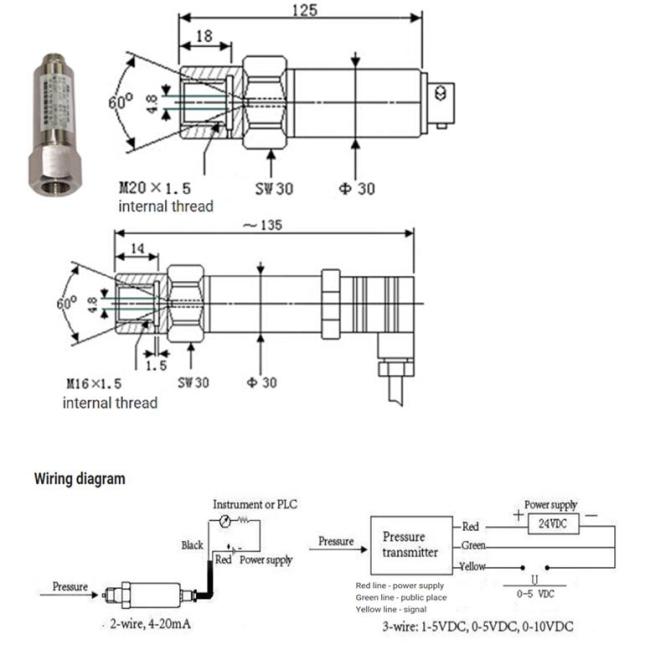

Model 4: The model adopts M20×1.5 or M16X1.5 internal thread with 60
degree inner cone sealing method.
