Silicone Oil Atmospheric Pressure Sensor
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
5-10days
Brand:
OEM
Product Description
Silicone Oil Atmospheric Pressure Sensor
Product Description
anti-corrosion and explosion-proof small-profifile pressure transmitter adopts high-precision, high temperature qualitative force-sensitive chip with stainless steel metal diaphragm. After strict precision temperature compensation, signal amplifification, V/I conversion, the pressure parameters are reliably converted into industry standard 4 ~20mA or 0~10mA signal output, widely used in petroleum, chemical, metallurgy, electric power, textile, environmental protection and other fifields.
| Range | -0.1MPa...0kPa~10kPa...100MPa | ||
| Overload capability | Below 10MPa ≤ 2 times full scale | ||
| 10MPa and above ≤1.5 times full scale | |||
| Pressure Type | G (gauge pressure), A (absolute pressure), S (sealed gauge pressure) | ||
| Accuracy | 0.1% (custom), 0.25% (typical), 0.5% (maximum) | ||
| Long-term stability | ±0.1%FS/year (typical), ±0.2%FS/year (maximum) | ||
| Zero temperature drift | ±0.03%FS/°C (≤100kPa), ±0.02%FS/°C (>100kPa) | ||
| Sensitivity temperature drift | ±0.03%FS/°C (≤100kPa), ±0.02%FS/°C (>100kPa) | ||
| Compensation temperature | 0°C~50°C(≤100kPa), -10°C~70°C(>100kPa) | ||
| Medium temperature | -40°C~80°C | ||
| Power supply | +12 ~ +36V (Default 24V) | ||
| Output signal | 4mA~20mA, 0V~10V (output range can be customized) | ||
| Load Resistance | Current type: ≤ (U-12) / 0.02 (Ω) | ||
| Response time | ≤1(10~90%)ms | ||
| Measuring medium | All corrosive gases, liquids compatible with 316L | ||
| Diaphragm material | 316L stainless steel | ||
| Housing material | 1Cr18Ni9Ti | ||
| Interface | M20×1.5 or customized | ||
| Protection level | IP65 (customizable IP68) | ||
OEM customization
* Range can be customized
* Support OEM customization
* Strong anti-interference ability
* Diffused silicon core
* High precision,good stability
* Stable performance, high quality media compatibility

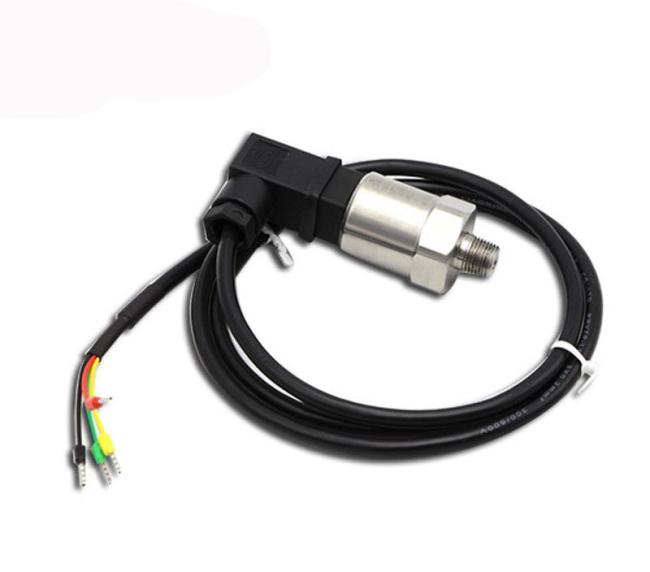

Hesman joint
* Hersman joint, PVE engineering plastics,
* Waterproof, dustproof, flame retardant, pressure resistant, anti-corrosion
* Applicable to more industrial sites to ensure the service life of products
Direct line out
* Waterproof design, in accordance with the site IP65 waterproof and water grade shielded wire
* Avoid signal interference and ensure product performance
* Pure copper core, durable, high conductivity
FAQ
Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.
Q:Could I visit your factory?
A: Sincerely invite you to visit our factory.
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping
to you . We have the certification of ISO,CE we could send the certification test of our company to you
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance
A: we will contact you in 1 hours as soon as we can.
Q:Could I visit your factory?
A: Sincerely invite you to visit our factory.
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping
to you . We have the certification of ISO,CE we could send the certification test of our company to you
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance
