IP67 32VDC Oil / Gas Industry 6000PSI Atmospheric Pressure Sensor
IP67 32VDC Oil / Gas Industry 6000PSI Atmospheric Pressure Sensor
Specification
| Measuring medium | wet Soil, Oil, Corrosive liquid and gas |
| Pressure type | Gauge pressure(G), Sealed pressure(S) |
| Pressure range | 6000psi |
| Power supply | 10-32VDC |
| Output signal | 4~20mA |
| Nonlinearity | 0.04%FS |
| Repeatability | ≤0.04%FS |
| Accuracy | 0.5%FS |
| Long-term stability | 0.2%FS/year (representative value) |
| Compensated temp | -25~70ºC/100ºC |
| Operation temp | -20~+85ºC |
| Response Time | ≤1mSec(representative value) |
| Insulation Resistance | ≤0.03%FS/ºC |
| Response time | ≤1ms(10%~90%) |
| Insulation resistance |
≥500 MΩ/100V |
| Safety overload pressure |
150%FS(1.5 Times Full Range, special: 5 Times Full Range) |
| Rupture pressure |
500%FS(5 Times Full Range, special: 10 Times Full Range) |
| Shock Limitation | About 10g/0~2000HZ |
| Impact Resistance | About 50g/1ms |
| Connection | Chuck type seal or specified |
| Wetted Materials | 17-4PH, stainless steel 304 |
| Ingress protection | IP67 |
| Electrical connections | 6Pins Aviation connector |
| Relative Humidity | 0~100% RH |
Details:
Optional configuration:Handle
Used External Plastic and Internal Steel Firm and Portable
Aviation connector Various configuration are available:
Cable / 4Pins I 6Pins Optional configuration:2 5 meter wire
Special alloy steel
Outstanding anti-corrosion&durbility performance
Integrated structure
Anti-blocking with 2.2cm diam macropore High safety
Description

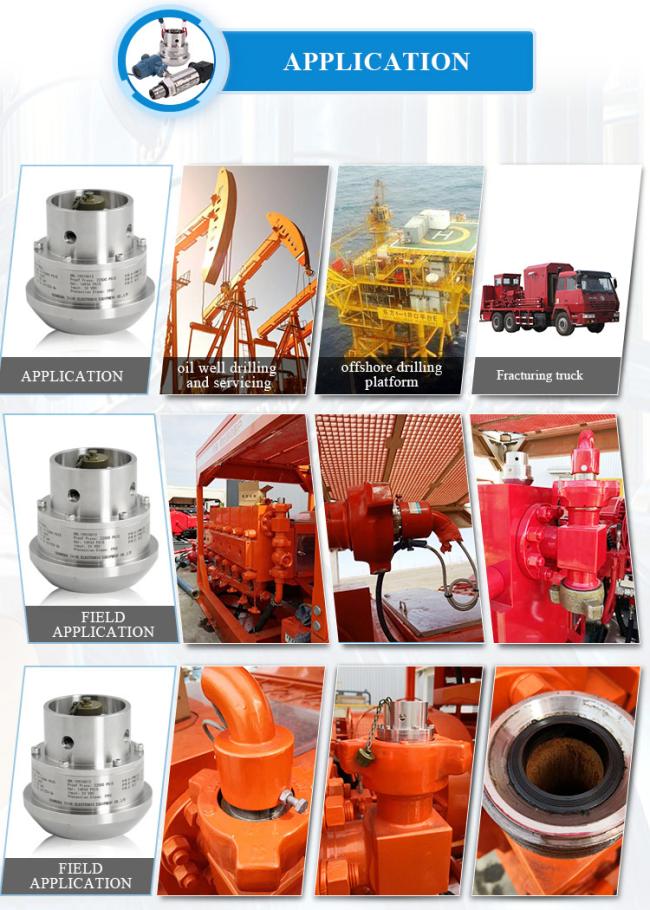

● The pressure transmitters have been designed specifically for oil field application.
● These pressure transmitters provide different kinds of signal output, including 4-20mA, 1-5VDC, 0-10VDC etc.
● The pressure transmitters has wide measuring ranges from 0...5000PSI to 0...45000 PSI, and it features fast dynamic response speed, high accuracy, strong anti-fatigue.
● The hammer union pressure ftting makes it easy to install and con- venience to use at oil well drilling and servicing.
